Nice Apollo Vanguard 3501 Dual Swing Gate Opener Complete Package with 310 Control Board and 50W Solar Panel

The Nice Apollo Vanguard 3600 ETL-1K Dual Swing Gate Operator Package with 50-Watt Solar Panel contains all the core items needed to install a reliable, top-notch, environmentally friendly operator system and boost security in any space. With the included 50-Watt Solar Panel and Regulator, you can harness the sun's power to operate your gate in an environmentally friendly fashion. Add in the two-button transmitter and a pair of photo eyes, and you have a great operator you can count on in various applications.
Part Number: VANGUARD-DUAL-310-FP-50S
$4,348.90 each
$4,348.90 each
Free Shipping!
OR


Details

Nice Apollo Vanguard 3501 Dual Swing Gate Opener Complete Package with 310 Control Board and 50W Solar Panel

The Nice Apollo Vanguard 3600ETL-1K 50-Watt Solar Gate Opener Package is easy to install, weather-resistant, and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount, and solar applications, this dual operator package includes everything needed for a fully functioning swing gate operator system. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, photo-eye set with hoods, and a limited time warranty.

Features:

• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• Operates Gates Up To 1,000 Lbs. And 20' Per Leaf
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

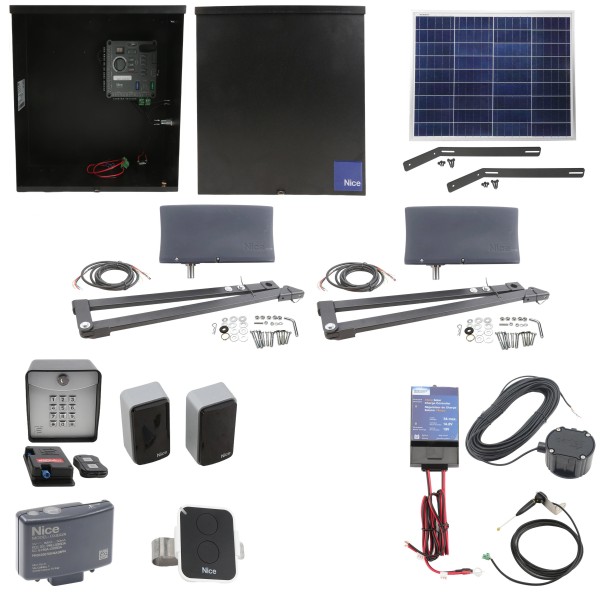

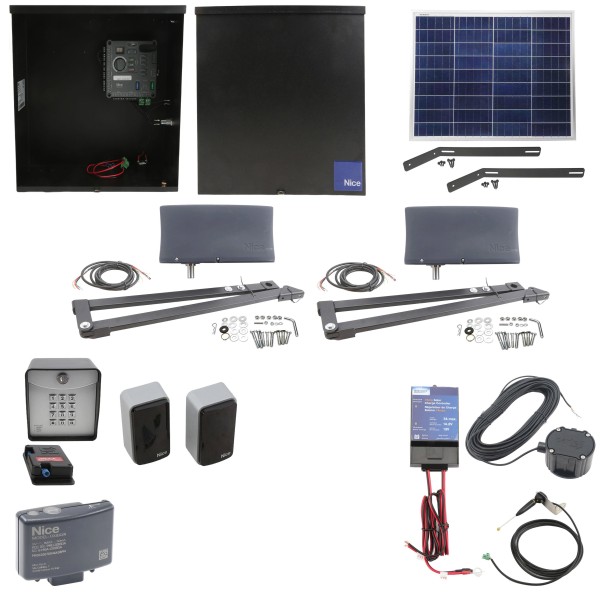

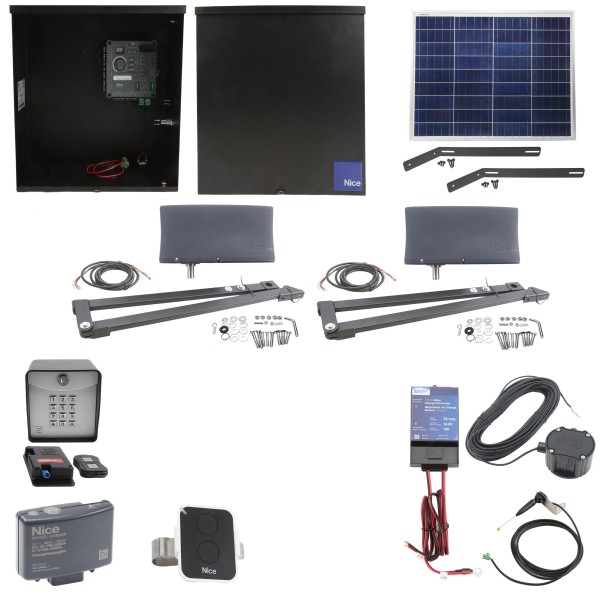

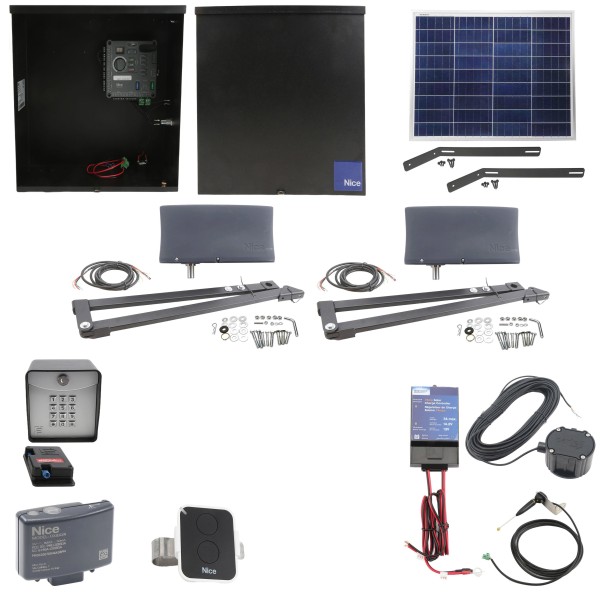

Package Includes:

• 1 x Nice Apollo Vanguard 3500 Swing Gate Operator
• 1 x 35-1 Primary Actuator Arm
• 1 x 35-2 Secondary Actuator Arm
• 1 x 50-Watt Solar Panel

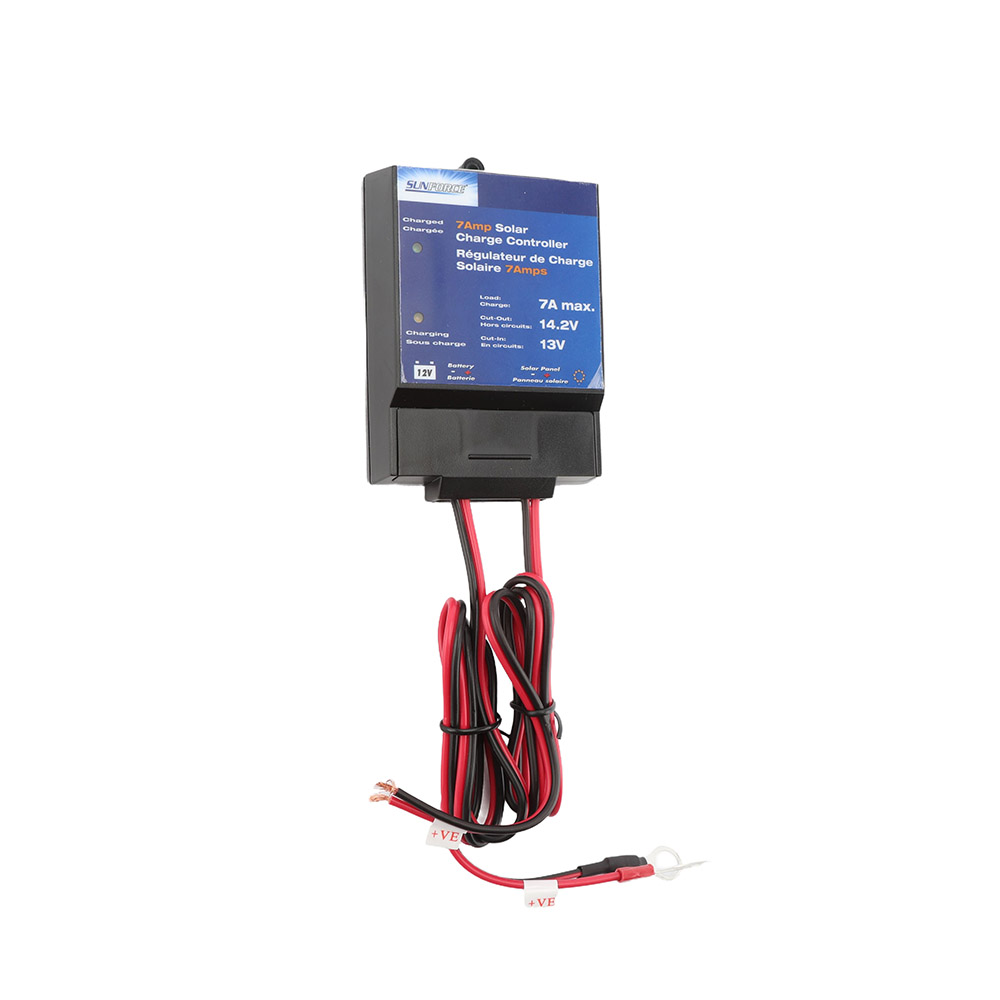

• 1 x Panel Regulator
• 1 x NIR-50 Photo Eye
• 1 x Wireless Keypad
• 1 x 5 Wire Exit Wand
• 1 x Apollo ON2E/A Two Button Transmitter

Specifications:

• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

WARRANTY:

All Nice Gate Operators have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Please Note: (Meets UL325 2018) At Least One Entrapment Device will be needed for board to function and meet UL325 2018 (MOFB, EPLOB/A, EPMA/A, NIR-50, IRB-MON, IRB-RET)
Specifications Warranty InformationON2E/A Transmitter ManualON2E/A Transmitter Specifications
SKU VANGUARD-DUAL-310-FP-50S
Board Type Mercury 310
Model Vanguard 35-1
Input Voltage 12 DC
Usage Class I, II
Single or Dual Arm Dual
Battery Type No Battery
Compatible Power Source 50W Solar Charged
Solar Wattage 50 Watt
Solar Package Yes
Package Type Full Package
Actuator Voltage 12 DC
Maximum Gate Weight 1000 lbs.
Max Gate Opening 20 ft.
BlueBUS Compatible BlueBUS Compatible
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes 50 Watt Solar System, Antenna, Keypad, Mounting Bracket(s), Photo Eye, Receiver, Solar Charger, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
