Nice Apollo Vanguard 3600ETL-1k Dual Swing Gate Opener Solar Package w/ 20 Watt Solar Panel and Entry/Exit Controls

Nice Apollo Vanguard 3600ETL-1k Dual Swing Gate Opener Solar Package w/ 20 Watt Solar Panel and Entry/Exit Controls

Nice Apollo 3600ETL-1k Vanguard Dual Swing Gate Opener Solar Package w/ 20 Watt Solar Panel and Entry/Exit Controls

The Nice Apollo Vanguard 3600 ETL-1k Dual Swing Gate Operator Package with 20 Watt Solar Panel contains all of the core items needed to install a reliable, top-notch, environmentally friendly operator system and boost security in any space. With a 20 Watt Solar Panel and regulator, you can harness the power of the sun to operate you gate in an environmentally friendly fashion. Add in a two-button transmitter, a five-wire exit wand, and a pair of photo eyes and you have a great operator you can count on in a range of applications.

$3,999.14 each
$3,999.14 each
Free Shipping!

Details

The Nice Apollo Vanguard 3600ETL-1k 20 Watt Solar Gate Opener Package is easy to install, weather-resistant, and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount, and solar applications, this dual operator package includes everything needed for a fully functioning swing gate operator system. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, photo-eye set with hoods, and a limited time warranty.

Included Products:

Transmitter

Solar Panel

Keypad

Exit System

Photo Eye

For full product information of each included component, click on the image to learn more.

Features:

• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• Operates gates up to 1,000 lbs. And 20' Per Leaf
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

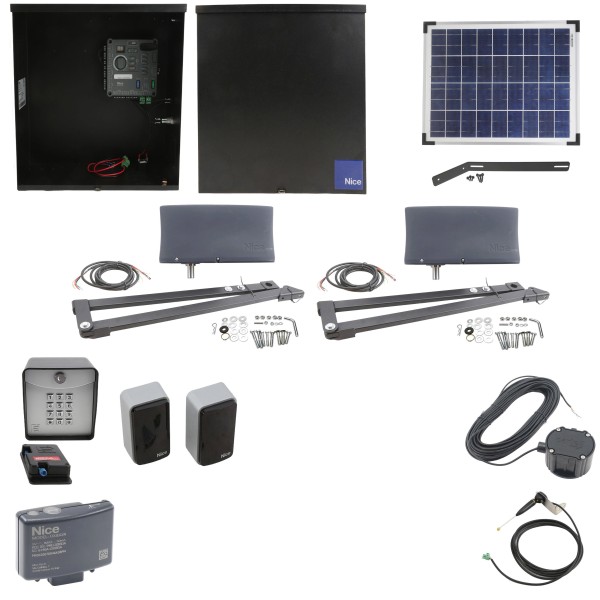

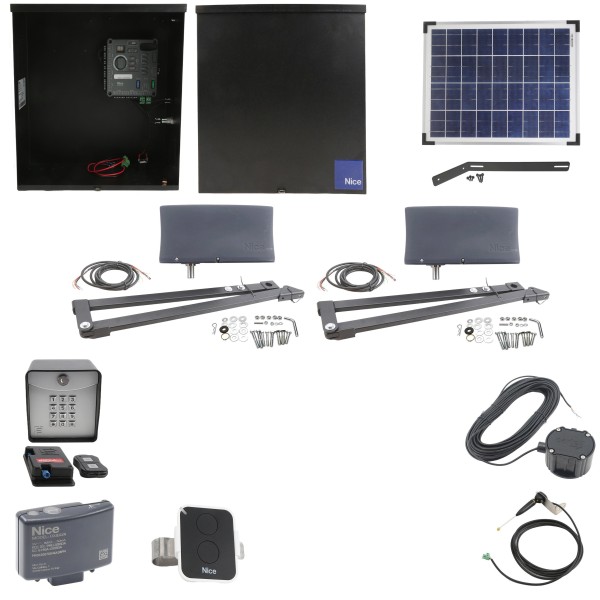

Package Includes:

• 2 x Nice Apollo Vanguard 3500 Swing Gate Operators
• 1 x 20 Watt Solar Panel
• 1 x Photo Eye Pair
• 1 x Ridge-433 Wireless Keypad
• 1 x CP4-100 5 Wire Exit Wand
• 1 x Nice Apollo ON2E/A Two Button Transmitter

Specifications:

• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

Warranty Information:

The two-year warranty will start from the time of shipment from HySecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Please Note: (Meets UL325 2018) At Least One Entrapment Device will be needed for board to function and meet UL325 2018 (MOFB, EPLOB/A, EPMA/A, EPMOB/A, IRB-MON, IRB-RET)

Specifications

Installation Manual

Warranty Information

Additional Information

SKU	3600-FULLPACKAGE--20W
Board Type	1050
Operator	Vanguard 1050 Dual
Arm Type	Vanguard
Usage Class	I, II
Single or Dual Operator	Dual
Maximum Gate Weight	1000 lbs.
Gate Opening	20 ft.
Solar Package	Yes
Manufacturer	Nice Apollo Gate Operators
Condition	New
Package Includes	Exit Wand, Keypad, Photo Eye, Solar Panel & Mounting Hardware, Transmitter
Warranty	Two Year Manufacturer's Limited Warranty
