Nice Apollo Vanguard 3501 Single Arm Swing Gate Opener Complete Package with 310 Control Board, 30W Solar Panel, and 35 Ah Battery

The Nice Vanguard 310 Swing Gate Operator Full Package has the core elements needed to install a reliable, easy-to-use gate opener system as well additional components such as the included Keypad and Exit Wand for maximum convenience, security, and reliability!
Part Number: VANGUARD-SINGLE-310-FP-30S-35AH
$3,090.55 each
$3,090.55 each
OR


Details

Nice Apollo Vanguard 3501 Single Arm Swing Gate Opener Complete Package with 310 Control Board, 30W Solar Panel, and 35 Ah Battery

The Nice Vanguard 310 Swing Gate Operator Full Package is easy to install, weather-resistant and includes extra components for maximum convenience, security, and reliability. Recommended for residential, light commercial, farm, and ranch applications, this operator package includes everything needed for a fully functioning swing gate operator. This unit is Solar Rechargeable. It features adjustable current sensitivity for automatic safety reverse and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, aerial antenna, a photo eye set, and a limited time warranty.

Features:

  • FREE SHIPPING
  • Solar Rechargeable
  • Includes A Limited Time Warranty
  • Automatic Adjustable Close Timer
  • Weather-Resistant NEMA 3R Control Box
  • Inputs For Safety Edges, Exit Probes, And Keypads
  • Adjustable Current Sensitivity For Automatic Safety Reverse
  • Budget-Friendly All Included Package Makes Buying And Installing Simple
  • Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

  • Farm And Ranch
  • Residential And Light Commercial
  • Push To Open Or Pull To Open Applications

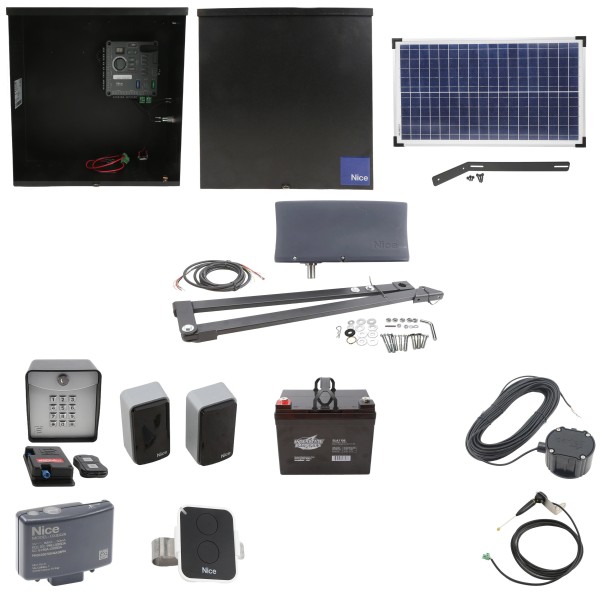

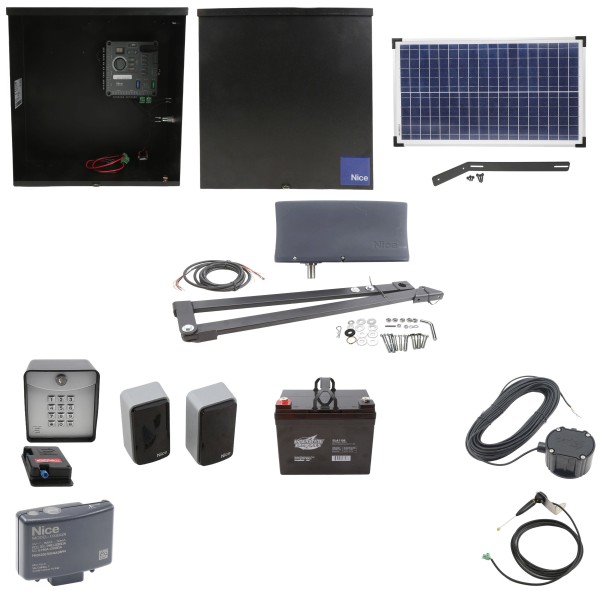

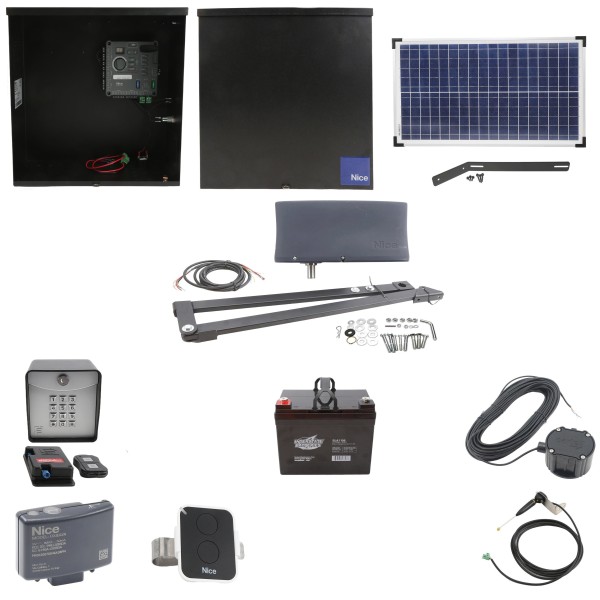

Package Includes:

  • 1 x Nice Titan 3500ETL-1K Swing Gate Operator
  • 1 x Primary 35-1 Actuator
  • 1 x 30 Watt Solar Panel
  • 1 x 35 Ah Battery
  • 1 x CP4-100 5 Wire Exit Wand
  • 1 x MX4920 Control Board
  • 1 x Ridge-433 Wireless Keypad
  • 1 x EPMOB/A Photo Eye Kit
  • 1 x Nice Apollo ON2E/A Two Button Transmitter
  • 1 x OXIBD/A Reciever
  • 1 x ABF/A Long Range Adjustable Aerial Antenna

Warranty Information:

The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Solar Panel Installation Solar Charger Manual Exit Wand Spec Sheet href="pdfs/CP-4-Installation-Manual_CSI724.pdf" class="readMoreBtn centered">Exit Wand Manual EPMOB/A Photo Eye Spec Sheet EPMOB/A Photo Eye Manual EPMOB/A Photo Eye Instructions 310 Control Board Spec Sheet 310 Control Board Installation OXBID/A Receiver Manual OXBID/A Receiver Manual Transmitter Spec Sheet Transmitter Manual Transmitter Instructions ABF/A Antenna Guide Warranty
Prefer to Call? (888) 378-1016

Questions about part number VANGUARD-SINGLE-310-FP-30S-35AH?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU VANGUARD-SINGLE-310-FP-30S-35AH
Board Type Mercury 310
Model Vanguard 35-1
Input Voltage 24 DC
Single or Dual Arm Single
Battery Type 35 Ah Battery - For AC Charged Applications
Compatible Power Source 30W Solar Charged
Actuator Voltage 24 DC
Maximum Gate Weight 1300 lbs.
Max Gate Opening 20 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Antenna, Battery, Exit Wand, Keypad, Mounting Bracket(s), Photo Eye, Receiver, Solar Panel, Transmitter
