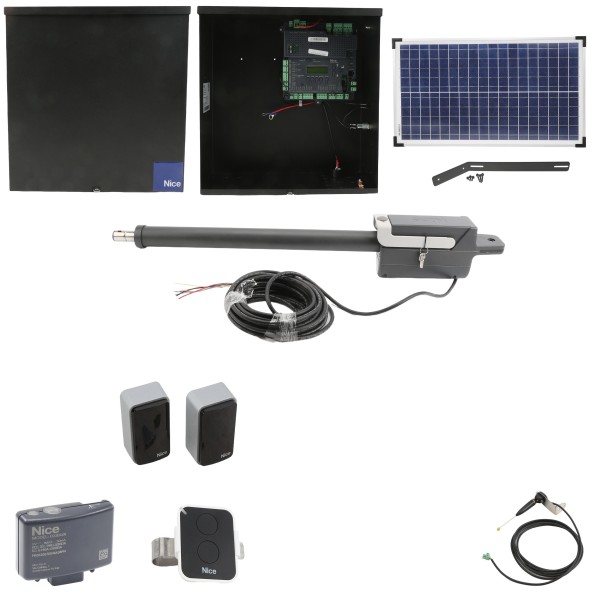

Nice Apollo TITAN12L1 Swing Gate Opener Solar Package w/ 1050 Control Board and 30 Watt Solar Panel

The Nice Apollo TITAN12L1 Solar Powered Swing Gate Operator Package with 30 Watt Solar Panel comes stocked with all of the products needed to install a top-notch, reliable gate operator system in any setting. Along with the innovative operator, the package includes a 30 Watt solar panel and regulator to allow you to harness the power of the sun and be environmentally friendly while also creating a safe, secure gate area. Add in an adaptable long-range antenna, photo-eye, receiver, and a compact, easy-to-use two-button transmitter and this package is perfect for a wide range of applications. It can operate gates up to 8' in length and weighing 1,000 lbs. per leaf, or gates up to 20' long weighing up to 600 lbs. per leaf.

Part Number: TITAN12L1-30S
$1,538.40 each
$1,538.40 each
Free Shipping!


Nice Apollo TITAN12L1 Swing Gate Opener Solar Package w/ 1050 Control Board and 30 Watt Solar Panel

The Nice Apollo TITAN12L1 Solar Powered 30 Watt Swing Gate Operator Full Package is easy to install, weather-resistant, and capable of handling single or dual gates up to 600 lbs. for a 20' long leaf and 1,000 lbs. for an 8' leaf. Recommended for residential, post mount and solar applications, this operator package is engineered for quiet operation, smooth closing, and all-weather performance. The unit comes with a 30 Watt solar panel, runs on a 12 VDC battery, and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, photo-eye set with hoods, and a limited time warranty.

Included Products:

For full product information of each included component, click on the image to learn more.


  • Solar Or AC Rechargeable
  • Includes A Limited Time Warranty
  • Built-In Solar Regulator And Charger
  • Internal Seven-Day Programmable Timer
  • Weather-Resistant NEMA 3R Control Box
  • 14-16 Second Open/Close Time In Each Direction
  • Inputs For Safety Edges, Exit Probes And Keypads
  • Adjustable Current Sensitivity For Automatic Safety Reverse
  • Operates Gates Up To 600 Lbs. For 20' Leaf And 1,000 lbs. For 8' Leaf
  • Budget-Friendly All Included Package Makes Buying And Installing Simple
  • Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers


  • Solar And AC
  • Farm And Ranch
  • Residential And Light Commercial

Package Includes:


  • Operating Voltage: 12VDC
  • Current Draw: 10 mA
  • Speed: 14-16 Seconds (90 degrees)
  • Shipping Info: 2 boxes, 64 lbs. (29 kg)
  • Control Panel Material: Black Powder-Coated Finish
  • Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

Warranty Information:

The two-year warranty will start from the time of shipment from HySecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Quick Start Guide (English)

Quick Start Guide (Spanish)


Warranty Information

Titan12Li Manual

Control Box Manual

NIR-50 325 Manual

Actuator Installation

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Name Nice Apollo TITAN12L1 Swing Gate Opener Solar Package w/ 1050 Control Board and 30 Watt Solar Panel
Board Type 1050
Operator Model Brand Titan 1050
Gate Arm Type Titan
Input Voltage 12 DC, 24 DC
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Solar Wattage 30 Watt
Solar Package Yes
Actuator Voltage 12 DC
Maximum Gate Weight 1000 lbs.
Max Gate Opening 8 ft. - 20 ft.*
BlueBUS Compatible BlueBUS Compatible
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Antenna, Photo Eye, Receiver, Solar Panel with Hardware, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
Price $1,538.40
