Nice Apollo TITAN12L1 Dual Swing Gate Opener Solar Package With 1050 Control Board and 30 Watt Solar Panel

The Nice Apollo TITAN12L1 Dual Swing Gate Operator Full Package with 30-Watt Solar Panel includes everything you will need for the complete installation and operation of a top-notch, environmentally friendly opener system. Its 30 30-watt solar Panel and regulator allow you to harness the sun's power to operate your gate. Add a photo-eye, actuator, and antenna, and this system is reliable and easy to use. It can operate gates up to 600 lbs. for a 20' long leaf and 1,000 lbs. for an 8' leaf.
Part Number: TITAN12L1DUAL-30S

$2,331.93 each
Free Shipping!
OR


Details

Nice Apollo TITAN12L1 Dual Swing Gate Opener Solar Package With 1050 Control Board and 30 Watt Solar Panel

The Nice Apollo TITAN12L1 30-Watt Solar Powered Dual Swing Gate Operator Package is easy to install, weather-resistant, and capable of handling single or dual gates up to 600 lbs. for a 20' long leaf and 1,000 lbs. for an 8' leaf. Recommended for residential, post mount, and solar applications, this operator package is engineered for quiet operation, smooth closing, and all-weather performance. The unit comes with a 30 Watt solar panel, runs on a 12 VDC battery, and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, photo-eye set with hoods, and a limited-time warranty.

Included Products:

For full product information of each included component, click on the image to learn more.

Features:

  • FREE SHIPPING
  • Solar Or AC Rechargeable
  • Includes A Limited Time Warranty
  • Built-In Solar Regulator And Charger
  • Internal Seven-Day Programmable Timer
  • Weather-Resistant NEMA 3R Control Box
  • 14-16 Second Open/Close Time In Each Direction
  • Inputs For Safety Edges, Exit Probes And Keypads
  • Adjustable Current Sensitivity For Automatic Safety Reverse
  • Operates Gates Up To 600 Lbs. For 20' Leaf And 1,000 lbs. For 8' Leaf
  • Budget-Friendly All Included Package Makes Buying And Installing Simple
  • Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

  • Solar And AC
  • Farm And Ranch
  • Residential And Light Commercial

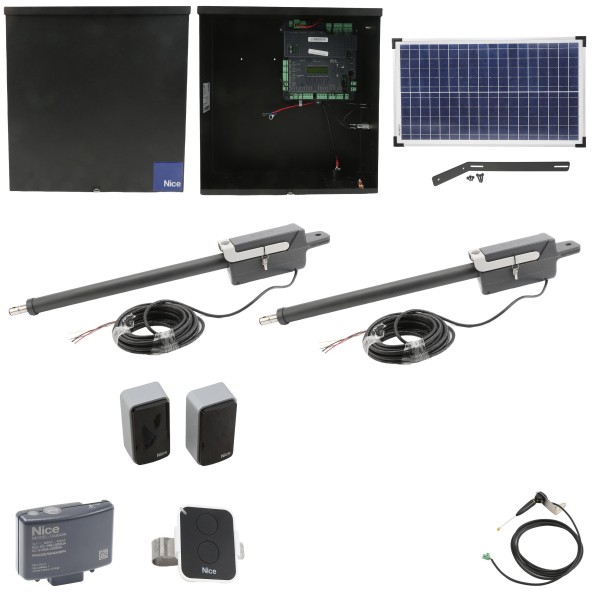

Package Includes:

  • 1 x Nice Apollo TITAN12L1 Dual Swing Gate Operator
  • 1 x Titan Primary Actuator, 12V With Encoder (12 ft. Harness)
  • 1 x Titan Secondary Actuator, 12V With Encoder (42 ft. Harness)
  • 1 x Medium Reflective Photocell
  • 1 x 30 Watt Solar Panel
  • 1 x Long Range Antenna
  • 1 x CP4-100 5 Wire Exit Wand
  • 1 x Nice Apollo ON2E/A Two Button Transmitter

Specifications:

  • Operating Voltage: 12VDC
  • Current Draw: 10 mA
  • Speed: 14-16 Seconds (90 degrees)
  • Shipping Info: 2 boxes, 64 lbs. (29 kg)
  • Control Panel Material: Black Powder-Coated Finish
  • Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

Warranty Information:

The two-year warranty will start from the time of shipment from HySecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Quick Start Guide (English)

Quick Start Guide (Spanish)

Specifications

Warranty Information

Titan12Li Manual

Control Box Manual

Actuator Installation

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Name Nice Apollo TITAN12L1 Dual Swing Gate Opener Solar Package With 1050 Control Board and 30 Watt Solar Panel
SKU TITAN12L1DUAL-30S
Board Type 1050
Operator Model Brand Titan 1050 Dual
Gate Arm Type Titan
Usage Class I, II
Single or Dual Operator Dual
Compatible Power Source Solar Charged
Solar Wattage 30 Watt
Solar Package Yes
Maximum Gate Weight 1000 lbs.
Max Gate Opening 8 ft. - 20 ft.*
BlueBUS Compatible BlueBUS Compatible
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Antenna, Photo Eye, Receiver, Solar Panel with Hardware, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
Price $2,331.93
