Nice Apollo Titan 12L1 Dual Swing Gate Opener Complete Package with 1050 Control Board and 30W Solar Panel
Details
Nice Apollo Titan 12L1 Dual Swing Gate Opener Complete Package with 1050 Control Board and 30W Solar Panel
The Nice Apollo TITAN12L1 Dual Swing Gate Operator 30-Watt Full Package is easy to install, weather-resistant and capable of handling single or dual gates up to 600 lbs. for a 20' long leaf and 1,000 lbs. for an 8' leaf. Recommended for residential, post mount and solar applications, this operator package is engineered for quiet operation, smooth closing and all-weather performance. The unit comes with a 30-Watt solar panel, runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, photo eye set with hoods and a limited time warranty.
Features:
- FREE SHIPPING
- Solar Or AC Rechargeable
- Includes A Limited Time Warranty
- Built-In Solar Regulator And Charger
- Internal Seven-Day Programmable Timer
- Weather-Resistant NEMA 3R Control Box
- Operates Gates Up To 1,000 Lbs. And 20' Per Leaf
- 14-16 Second Open/Close Time In Each Direction
- Inputs For Safety Edges, Exit Probes And Keypads
- Adjustable Current Sensitivity For Automatic Safety Reverse
- Budget-Friendly All Included Package Makes Buying And Installing Simple
- Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers
Applications:
- Solar And AC
- Farm And Ranch
- Residential And Light Commercial

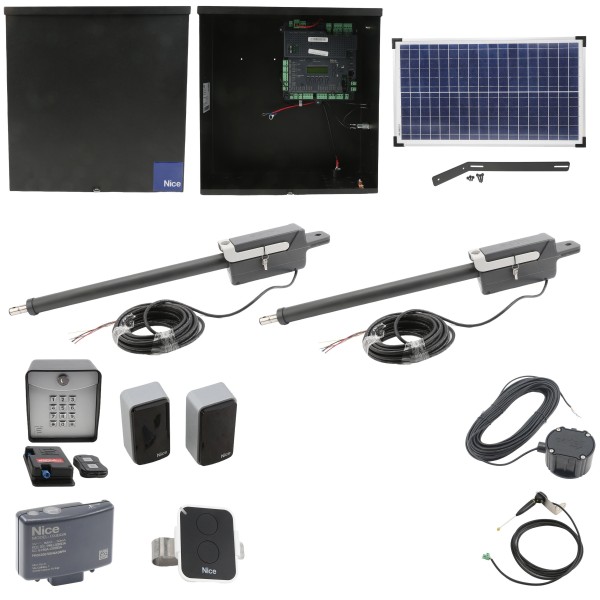

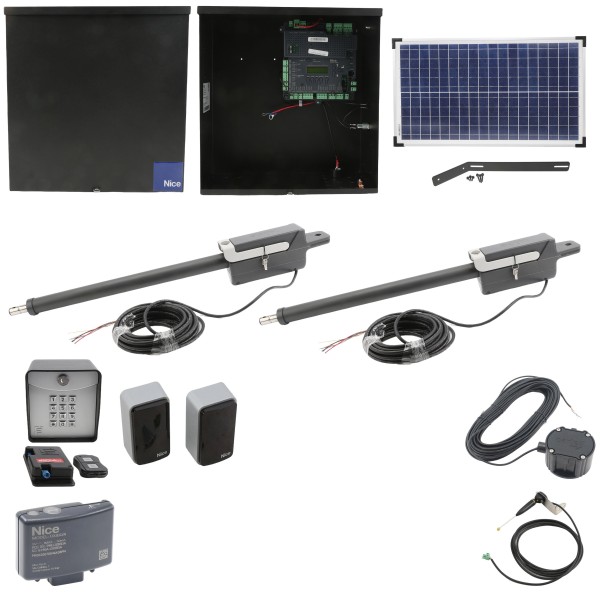

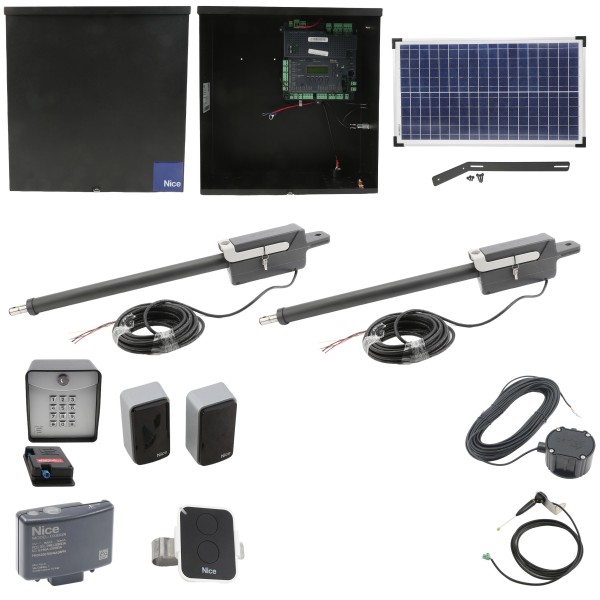

Package Includes:
- 1 x Nice Apollo TITAN12L1 Dual Swing Gate Operator
- 1 x Titan Primary Actuator, 12V With Encoder (12 ft. Harness)
- 1 x Titan Secondary Actuator, 12V With Encoder (42 ft. Harness)
- 1 x Medium Reflective Photocell
- 1 x 30-Watt Solar Panel
- 1 x Ridge-433 Wireless Keypad
- 1 x CP4-100 5 Wire Exit Wand
- 1 x Nice Apollo ON2E/A Two Button Transmitter
- 1 x 912L-2 Secondary Arm
Specifications:
- Operating Voltage: 12VDC
- Current Draw: 10 mA
- Speed: 14-16 Seconds (90 degrees)
- Shipping Info: 2 boxes, 64 lbs. (29 kg)
- Control Panel Material: Black Powder-Coated Finish
- Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
Warranty Information:
The two-year warranty will start from the time of shipment from HySecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.
Quick Start Guide (English) Quick Start Guide (Spanish) Specifications Warranty Information Titan12Li Manual Control Box Manual Actuator Installation ON2E/A Transmitter ManualON2E/A Transmitter SpecificationsQuestions about part number TITAN-DUAL-1050-FP-30S?
Required Fields *
| SKU | TITAN-DUAL-1050-FP-30S |
|---|---|
| Board Type | 1050 |
| Model | Titan 912L-1 |
| Input Voltage | 12 DC |
| Usage Class | I, II |
| Single or Dual Arm | Dual |
| Battery Type | No Battery |
| Compatible Power Source | 30W Solar Charged |
| Solar Wattage | 30 Watt |
| Solar Package | Yes |
| Actuator Voltage | 12 DC |
| Maximum Gate Weight | 1000 lbs. |
| Max Gate Opening | 20 ft. |
| BlueBUS Compatible | BlueBUS Compatible |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Antenna, Exit Wand, Keypad, Mounting Bracket(s), Photo Eye, Receiver, Solar Panel, Transmitter |
| Warranty | Two Year Manufacturer's Limited Warranty |
