Nice Apollo Titan 12L1 Dual Swing Gate Opener Complete Package with 1050 Control Board
Details
Nice Apollo Titan 12L1 Dual Swing Gate Opener Complete Package with 1050 Control Board
The Nice Apollo TITAN12L1 Dual Swing Gate Operator Full Package is easy to install, weather-resistant, and capable of handling single or dual gates up to 600 lbs. for a 20' long leaf and 1,000 lbs. for an 8' leaf. Recommended for residential, post mount and solar applications, this operator package is engineered for quiet operation, smooth closing, and all-weather performance. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, photo-eye set with hoods, and a limited time warranty.
Features:
- FREE SHIPPING
- Solar Or AC Rechargeable
- Includes A Limited Time Warranty
- Built-In Solar Regulator And Charger
- Internal Seven-Day Programmable Timer
- Weather-Resistant NEMA 3R Control Box
- 14-16 Second Open/Close Time In Each Direction
- Inputs For Safety Edges, Exit Probes And Keypads
- Adjustable Current Sensitivity For Automatic Safety Reverse
- Operates Gates Up To 600 Lbs. For 20' Leaf And 1,000 lbs. For 8' Leaf
- Budget-Friendly All Included Package Makes Buying And Installing Simple
- Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers
Applications:
- Solar And AC
- Farm And Ranch
- Residential And Light Commercial

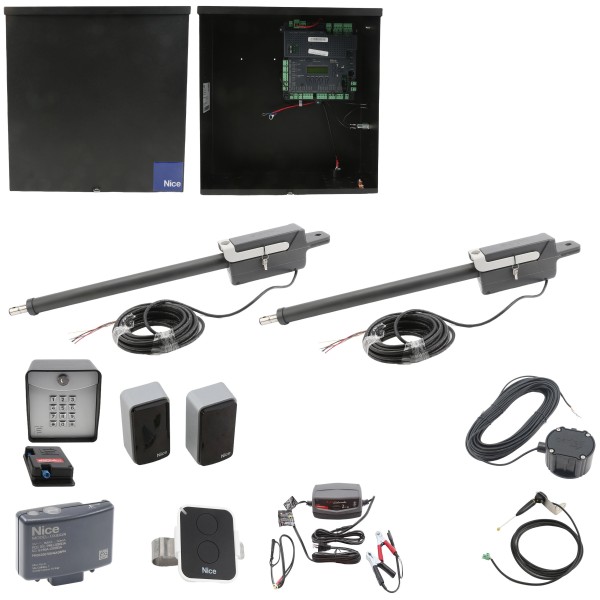

Package Includes:
- 1 x Nice Apollo TITAN12L1 Dual Swing Gate Operator
- 1 x Titan Primary Actuator, 12V With Encoder (12 ft. Harness)
- 1 x Titan Secondary Actuator, 12V With Encoder (42 ft. Harness)
- 1 x Medium Reflective Photocell
- 1 x Battery Charger
- 1 x Ridge-433 Wireless Keypad
- 1 x CP4-100 5 Wire Exit Wand
- 1 x Nice Apollo ON2E/A Two Button Transmitter
- 1 x 912L-2 Secondary Arm
Specifications:
- Operating Voltage: 12VDC
- Current Draw: 10 mA
- Speed: 14-16 Seconds (90 degrees)
- Shipping Info: 2 boxes, 64 lbs. (29 kg)
- Control Panel Material: Black Powder-Coated Finish
- Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
- Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
Warranty Information:
The two-year warranty will start from the time of shipment from HySecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.
Quick Start Guide (English) Quick Start Guide (Spanish) Specifications Warranty Information Titan12Li Manual Control Box Manual Actuator Installation ON2E/A Transmitter ManualON2E/A Transmitter Specifications| SKU | TITAN-DUAL-1050-FP |
|---|---|
| Board Type | 1050 |
| Model | Titan 912L-1 |
| Input Voltage | 12 DC |
| Usage Class | I, II |
| Single or Dual Arm | Dual |
| Battery Type | No Battery |
| Compatible Power Source | AC Charged |
| Actuator Voltage | 12 DC |
| Maximum Gate Weight | 1000 lbs. |
| Max Gate Opening | 20 ft. |
| BlueBUS Compatible | BlueBUS Compatible |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Antenna, Battery Charger, Exit Wand, Keypad, Photo Eye, Receiver, Transmitter |
| Warranty | Two Year Manufacturer's Limited Warranty |
