Nice Apollo TITAN12L1 AC Swing Gate Opener Kit w/ Battery Backup T12L1-AC-KIT
Details
Nice Apollo TITAN12L1 AC Swing Gate Opener Kit w/ Battery Backup T12L1-AC-KIT
The Nice O-T12L1MB-AC-KT Apollo TITAN12L1 AC Swing Gate Opener Kit With Battery Backup is an easy to install, weather-resistant, single gate opener kit that's capable of opening swing gates weighing up to 600 lbs. for 20' long leaves and 1,000 lbs. for an 8' leaves. Recommended for residential, post mount, and solar applications, this operator package is engineered for quiet operation, smooth closing, and all-weather performance. The unit runs on and includes an 8Ah rechargeable battery It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer.
This high-quality Swing Gate Operator Kit includes the TITAN Operator Kit With MBOX Enclosure With 1050 Control Board, 912L-1 Titan Actuator, ON2E/A Two Channel Wireless Remote Transmitter, OXI/A Plug-In Receiver Module, MX4257 UL325 Reflective Photo Eye Set With Adjustable Bracket and Reflector Hood, ABF/A 433MHz External Antenna, and a limited time warranty.

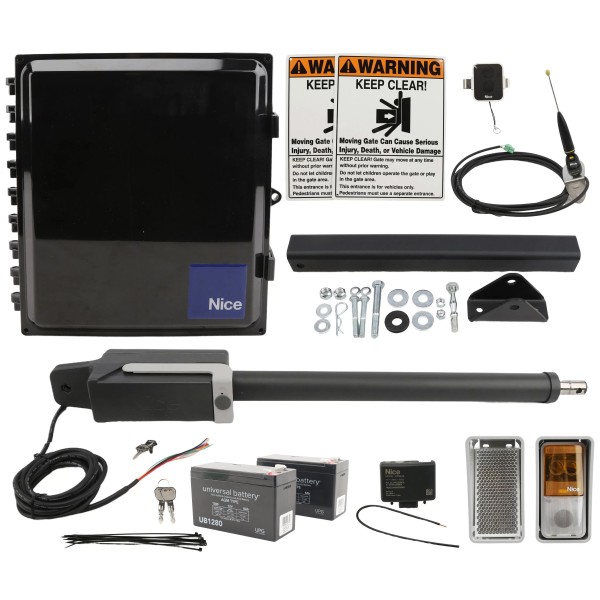

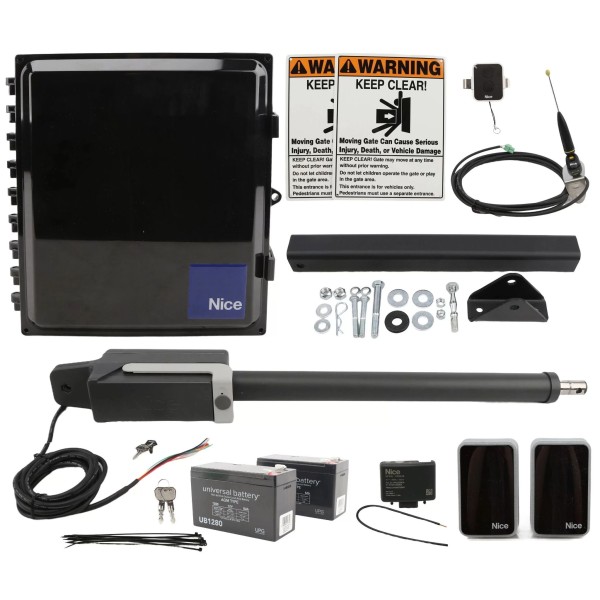

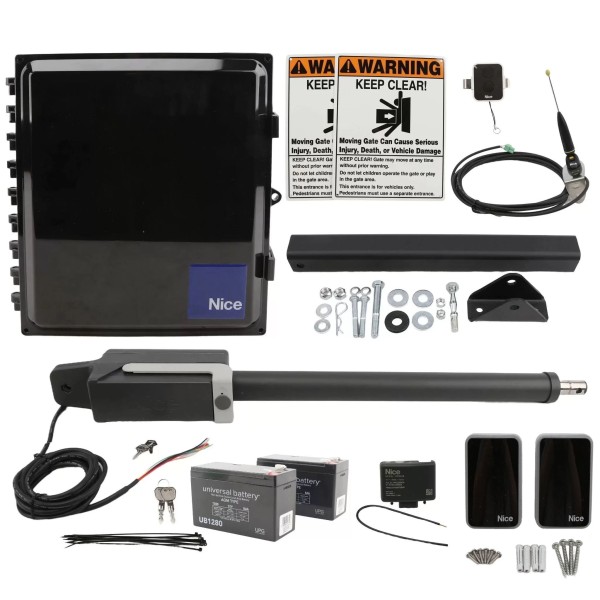

Includes:
- (1) Titan Swing Gate Opener
- (1) Titan 912L-1 Actuator (With Installation Hardware)
- (1) MB1050 Enclosed Control Box (With 1050 Control Board)
- (1) ABF/A External Long-Range Adjustable Antenna
- (2) 8Ah Rechargeable Batteries
- (1) ON2E/A Two Channel Remote Transmitter
- (1) OXI/A Plug-In Receiver Module
- (1) MX4257 UL325 Reflective Photo Eye Set
- (2) Warning Signs
Key Features:
- Includes Two Built-In 8Ah, 12V Batteries
- Designed For Swing Gates Up To 20 ft. Long or 1000 lbs.
- Includes Advanced 1050 Control Board With Heavy-Duty, Waterproof Enclosure
- Easy To Install and Low-Maintenance For Rural & Residential Installations
- Integral Audio Alarm For Signalling Gate Activity, Status & More
- Comes With Transmitter, Receiver, Photo Eye Kit, & More At No Extra Cost
Technical Specifications:
- Power Source: AC Transformer
- Duty Cycle: Varies Based On Charging Capacity*
- Arm Speed: 14 - 16 Seconds. Adjustable Soft-Start, Soft-Stop
- Maximum Gate Length: Up To 20 ft. Gate Leaf
- Maximum Gate Capacity: Up To 600 lbs For 20 ft. Leaf or Up To 1000 lbs For 8 ft. Leaf
- Drive Type: Electromechanical
- Input Voltage: 10-35 VDC
- Idle Current: 10 mA
- Accessory Power: 12 VDC and 24 VDC
- Battery Type: 8Ah Battery (Includes Two)
- Operating Voltage: 12 VDC
- User Controls: 1050US Intelligent Control Board
- Relays: 2 Programmable Relays
- Actuator Dimensions: 42" Retracted, 71" Extended
- Usage Class: I, II
- Enclosure Dimensions: 14.25" W x 15.125" H x 9" D
- Temperature Range: -4?? F to 122?? F
Warranty Information:
All Nice Gate Openers have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from HySecurity. A three-year limited-time warranty is offered for registered gate openers. All gate openers will be registered through DF Supply Inc. at the time of purchase. The three-year limited-time warranty will be effective after the date of installation.
Installation Gallery
| SKU | T12L1MB-AC-KT |
|---|---|
| Board Type | 1050 |
| Model | Titan 912L-1 |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Usage Class | I, II |
| Single or Dual Arm | Single |
| Compatible Power Source | AC Charged |
| Actuator Voltage | 12 DC |
| Maximum Gate Weight | 1000 lbs. |
| Max Gate Opening | 20 ft. |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Antenna, Photo Eye, Receiver, Transmitter |
| Warranty | Two Year Manufacturer's Limited Warranty |
