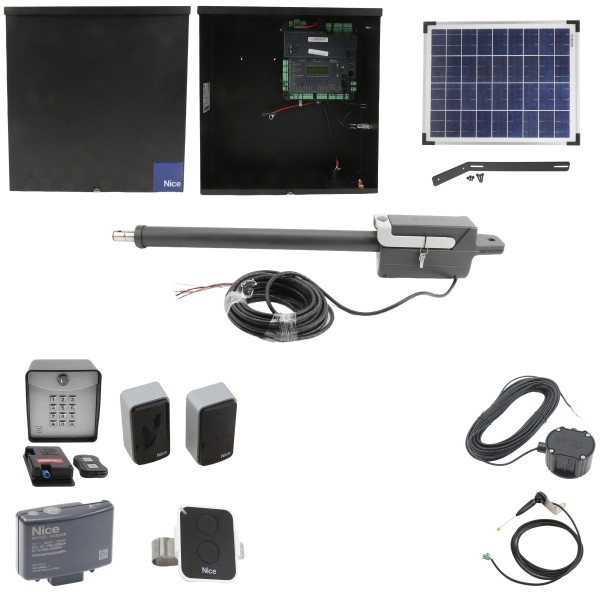

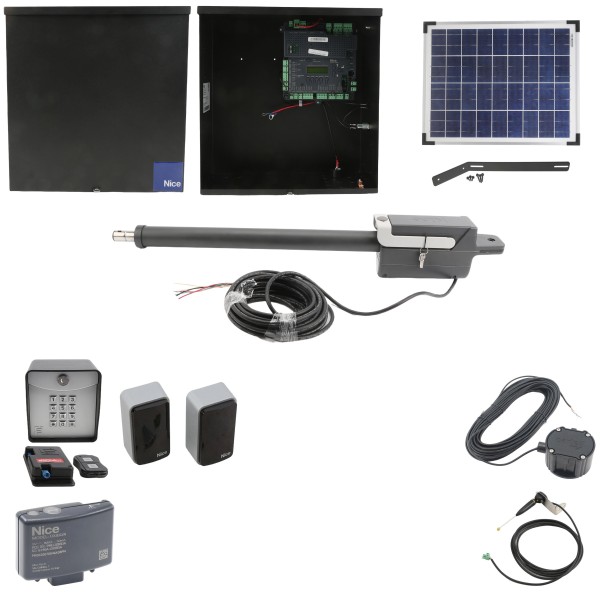

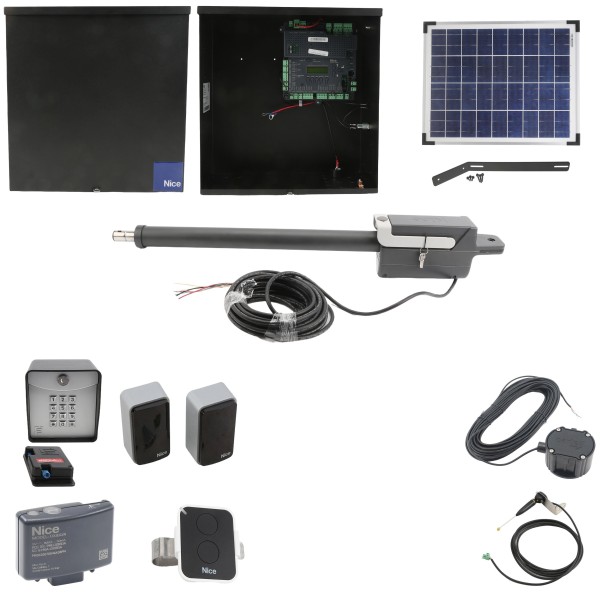

Nice Apollo TITAN12L1 Swing Gate Opener Solar Package w/ 1050 Control Board, 20 Watt Solar Panel and Entry/Exit Controls

The Nice Apollo TITAN12L1 Solar Powered Swing Gate Operator Full Package (1050 Board) with 20 Watt Solar Panel includes everything you will need for the complete installation and operation of a top-notch, environmentally friendly opener system. With a two-button transmitter, keypad and exit wand system, controlling traffic into and out of any area is simple and straightforward. Its 20 Watt Solar Panel and regulator allow you to harness the power of the sun to operate your gate. Add in a photo eye, actuator and antenna and this system is both reliable and easy to use. It can operate gates as long as 8' per leaf and weighing up to 1,000 lbs, as well as gates of up to 20' weighing as much as 600 lbs.
Part Number: TITAN12L1-FULLPACKAGE-20S

$1,892.33 each
Free Shipping!
OR


Details

Nice Apollo TITAN12L1 Swing Gate Opener Solar Package w/ 1050 Control Board, 20 Watt Solar Panel and Entry/Exit Controls

The Nice Apollo TITAN12L1 Solar Powered 20 Watt Swing Gate Operator Full Package is easy to install, weather-resistant and capable of handling single or dual gates up to 600 lbs. for a 20' long leaf and 1,000 lbs. for an 8' leaf. Recommended for residential, post mount and solar applications, this operator package is engineered for quiet operation, smooth closing and all-weather performance. The unit comes with a 20 Watt solar panel, runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, photo eye set with hoods and a limited time warranty.

Included Products:

For full product information of each included component, click on the image to learn more.

Features:

  • FREE SHIPPING
  • Solar Or AC Rechargeable
  • Includes A Limited Time Warranty
  • Built-In Solar Regulator And Charger
  • Internal Seven-Day Programmable Timer
  • Weather-Resistant NEMA 3R Control Box
  • 14-16 Second Open/Close Time In Each Direction
  • Inputs For Safety Edges, Exit Probes And Keypads
  • Adjustable Current Sensitivity For Automatic Safety Reverse
  • Operates Gates Up To 600 Lbs. For 20' Leaf And 1,000 lbs. For 8' Leaf
  • Budget-Friendly All Included Package Makes Buying And Installing Simple
  • Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

  • Solar And AC
  • Farm And Ranch
  • Residential And Light Commercial

Package Includes:

Specifications:

• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 14-16 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

Warranty Information:

The two-year warranty will start from the time of shipment from HySecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Quick Start Guide (English)

Quick Start Guide (Spanish)

Specifications

Warranty Information

Titan12Li Manual

Control Box Manual

NIR-50 325 Manual

Actuator Installation

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

SKU TITAN12L1-FULLPACKAGE-20S
Board Type 1050
Operator Titan 1050
Arm Type Titan
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Solar Package Yes
Maximum Gate Weight 1000 lbs.
Gate Opening 8 ft. - 20 ft.*
BlueBUS Compatible BlueBUS Compatible
Manufacturer Nice Apollo Gate Operators
Condition New
Package Includes Antenna, Exit Wand, Keypad, Photo Eye, Receiver, Solar Panel with Hardware, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
