Nice Apollo 816 Linear Actuator Solar Bundle w/ Mercury 310 Controller Swing Gate Opener Kit - O-A310-SLR-BL
Details
Nice Apollo 816 Linear Actuator Solar Bundle w/ Mercury 310 Controller Swing Gate Opener Kit - O-A310-SLR-BL
The Nice Apollo Linear Actuator Solar Bundle With Mercury 310 Controller Kit is an easy to install, easy-to-operate, single swing gate opener kit that's capable of opening gates weighing up to 800 lbs. and up to 16 ft, long. This operator package is recommended for quiet operation, smooth closing, and all-weather performance recommended for farm and ranch gate solar installations. Depending on how large the swinging gate is, it features a typical opening/closing time range of 14-16 seconds in each direction and an automatic force sensitivity for automatic safety reverse.
The innovative new Mercury 310 Control Board is a UL 325 safety compliant controller designed for use with residential linear swing gate actuators. It features an easy-to-understand, user-friendly controller interface, meaning no need to hire a professional installer to achieve the full functionality and safety typically needed for controller setup. By integrating redundant internal safety functions and automating many of the typical setup steps, the Mercury 310 ensures full UL 325 safety compliance, while also achieving powerful features and accurate configurations. It also boasts an integrated battery charge controller with MPPT technology that optimizes battery charging from a wide variety of solar panels. When in standby mode, it maximizes battery life and efficiency with its minuscule standby current, while also featuring a prominent Battery Health LED warning that alerts the user about any potential power issues. Additionally, it has two built-in accessory ports that are designed for foolproof support of both BlueBUS and 10K Monitored External Entrapment Sensors.

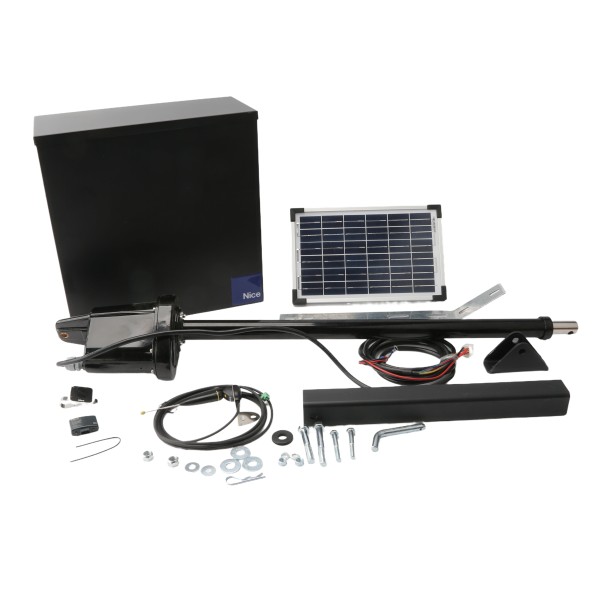

Includes:
- (1) 816-1 Actuator Arm
- (1) 10-Watt Solar Panel With Mounting Bracket
- (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
- (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
- (1) Mercury 310 UL 325 Residential Smart Control Board
- (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid
Key Features:
- Designed For Single Swing Gate Applications
- Electromechanical Drive - Quiet, Powerful, and Field-Repairable
- Open/Close Time: 14 - 16 Seconds (Depending On Gate Weight and Length)
- Maximum Gate Length: 16 ft.
- Maximum Gate Weight: Up To 800 lbs.
- ETL Listed (UL 325): Usage Class I, II
- Three-Year Manufacturer's Limited Warranty
Technical Specifications:
- Duty Cycle: Varies Based On Solar Charging Capacity
- Drive: Electromechanical
- Open/Close Time: 14 - 16 Seconds
- Maximum Gate Length: 16 ft.
- Maximum Gate Weight: Up To 800 lbs.
- Operating Voltage: 12 VDC
- Idle Current: 10 mA
- Input Voltage: 18 VDC to 24 VDC
- Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
- Communication: BlueBUS, USB, OXI
- User Controls: Mercury 310 Controller
- Relays: None
- Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
- Control Box Dimensions: 18" W x 18" H x 8" D
- Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
- External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
- Operating Temperature: -4?? to 122?? F
Mercury 310 Installation Manual
816 Actuator Installation Manual
| SKU | O-A310-SLR-BL |
|---|---|
| Board Model | Mercury 310 |
| Model | No |
| Usage Class | I, II |
| Single or Dual Arm | Single |
| Solar Package | Yes |
| Maximum Gate Weight | 800 lbs. |
| Max Gate Opening | 16 ft. |
| BlueBUS Compatible | Yes |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Receiver, Transmitter |
| Warranty | Three Year Manufacturer's Limited Warranty |
