Nice Apollo Vanguard 3501 Single Swing Gate Opener Complete Package with 310 Control Board and 30W Solar Panel
Details
Nice Apollo Vanguard 3501 Single Swing Gate Opener Complete Package with 310 Control Board and 30W Solar Panel
The Nice Apollo Vanguard 3500 Swing Gate Operator Package with 30-Watt Solar Panel is easy to install, weather-resistant, and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount, and solar applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, photo-eye set with hoods, and a limited time warranty.
Features:
• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• Operates gates up to 1,000 lbs. and 20' Per Leaf
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers
Applications:
• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

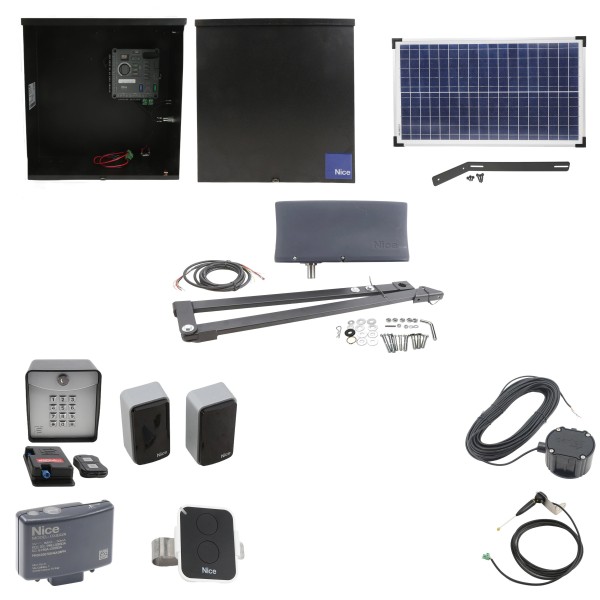

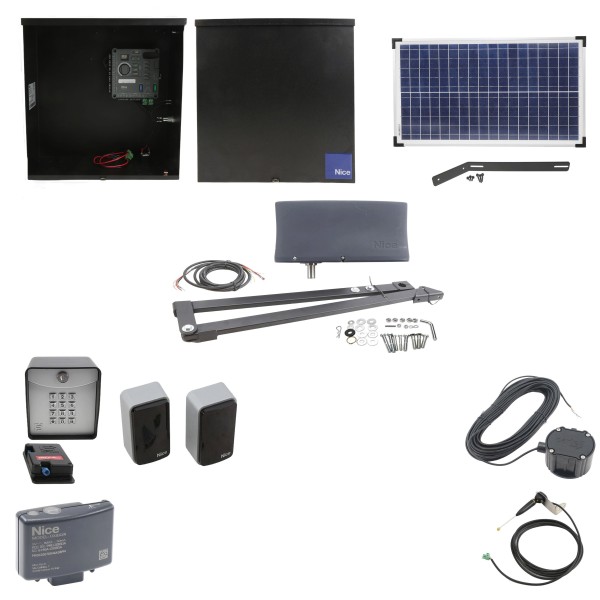

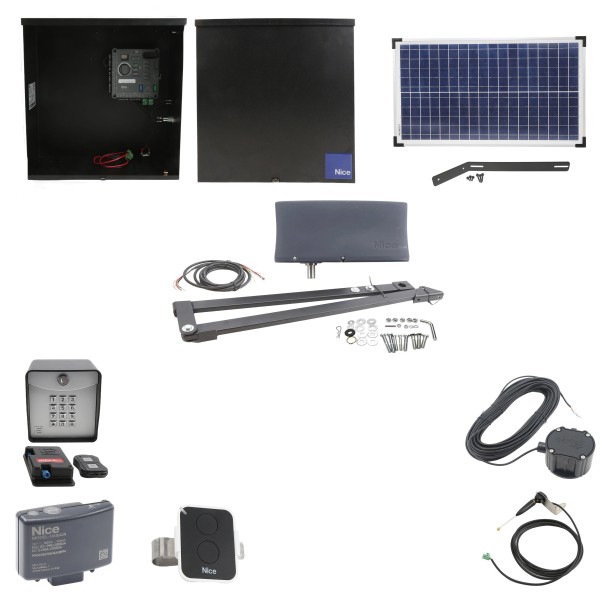

Package Includes:
• 1 x Nice Apollo 3500 ETL-1k Vanguard 3501 Swing Gate Operator
• 1 x 35-1 Primary Actuator Arm
• 1 x 35-2 Secondary Actuator Arm
• 1 x Photo Eye Pair
• 1 x 30-Watt Solar Panel
• 1 x CP4-100 5 Wire Exit Wand
• 1 x Ridge-433 Wireless Keypad
• 1 x Nice Apollo ON2E/A Two Button Transmitter
• 2 x Arm Brackets (10015290 & 10000415)
Specifications:
• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
WARRANTY:
All Nice Gate Operators have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.
Questions about part number VANGUARD-SINGLE-310-FP-30S?
Required Fields *
SKU | VANGUARD-SINGLE-310-FP-30S |
---|---|
Board Type | Mercury 310 |
Model | Vanguard 35-1 |
Input Voltage | 24 DC |
Usage Class | I, II |
Single or Dual Arm | Single |
Battery Type | No Battery |
Compatible Power Source | 30W Solar Charged |
Solar Wattage | 30 Watt |
Solar Package | Yes |
Actuator Voltage | 24 DC |
Maximum Gate Weight | 1300 lbs. |
Max Gate Opening | 20 ft. |
BlueBUS Compatible | BlueBUS Compatible |
Manufacturer | Nice Apollo Gate Operators |
Condition | New |
Kit Includes | Antenna, Exit Wand, Keypad, Mounting Bracket(s), Photo Eye, Receiver, Solar Panel, Transmitter |
Warranty | Two Year Manufacturer's Limited Warranty |
