Nice Apollo Vanguard 3500 ETL-1K Single Arm Swing Gate Opener Package with 30W Solar Panel and 310 Control Board

The Nice Apollo 3500 Vanguard Swing Gate Operator 30-Watt Solar Package is easy to install, weather-resistant and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount and solar applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, solar panel, transmitter, and a limited time warranty.

Please Note: At Least One Entrapment Device will be needed for the board to function and meet UL325 2018 compliance standards. Consider the following: EPMOB/A, EPLOB/A, EPMA/A, or IRB-RET2

Features:

• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Operates gates up to 600 lbs. and 16'
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

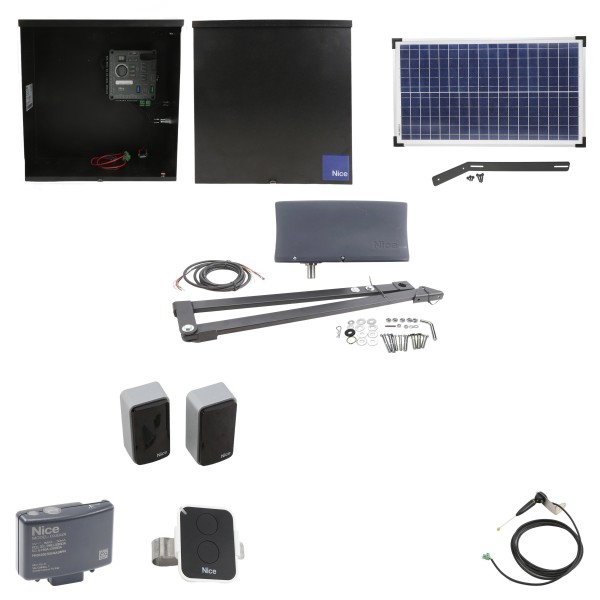

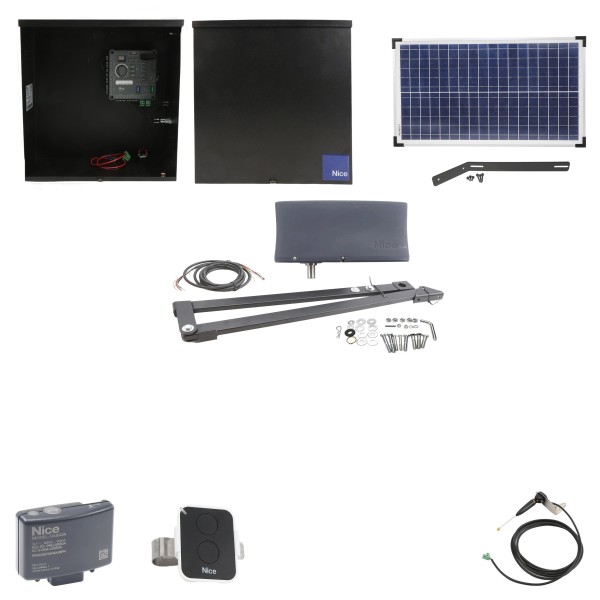

Package Includes:

• 1 x Nice Apollo 3500 Vanguard Swing Gate operator
• 1 x 35-1 Primary Actuator Arm
• 1 x 35-2 Secondary Actuator Arm
• 1 x 30-Watt Solar Panel
• 1 x Apollo ON2E/A Two Button Transmitter

Specifications:

• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

WARRANTY:

All Nice Gate Operators has a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.
