Nice Apollo Vanguard 3601 Dual 20W Solar Swing Gate Opener Bundle w/ 1050 Control Board & Photo Eyes
Details
Nice Apollo Vanguard 3601 Dual 20W Solar Swing Gate Opener Bundle w/ 1050 Control Board & Photo Eyes
The Nice Apollo Vanguard 3600ETL-1k 20 Watt Solar Gate Opener Package is easy to install, weather-resistant and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount and solar applications, this dual operator package includes everything needed for a fully functioning swing gate operator system. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Package includes the operator, battery charger, transmitter, photo-eye set with hoods, and a limited time warranty.
Included Products:
For full product information of each included component, click on the image to learn more.
Features:
• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• Operates Gates Up To 1,000 Lbs. And 20' Per Leaf
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers
Applications:
• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

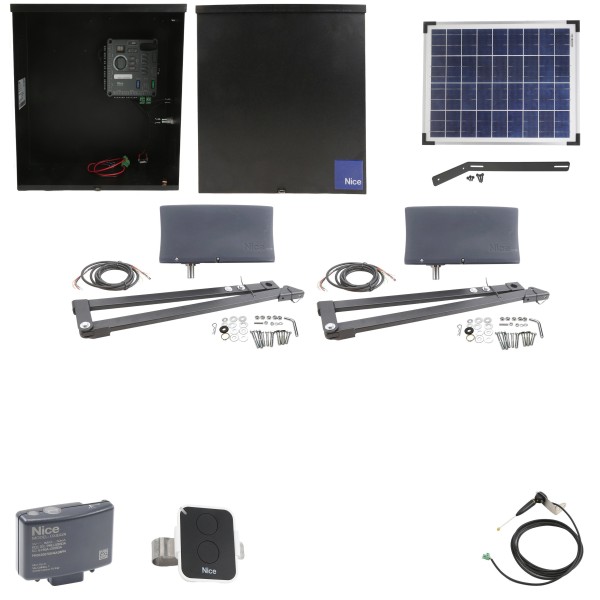

Package Includes:
• 2 x Nice Apollo Vanguard 3500 Swing Gate Operators
• 1 x 20 Watt Solar Panel
• 1 x Photo Eye Pair
• 1 x Nice Apollo ON2E/A Two Button Transmitter
Specifications:
• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
WARRANTY:
All Nice Gate Operators have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.
SKU | 3600ETL-20S |
---|---|
Board Type | 1050 |
Operator Model Brand | Vanguard 1050 Dual |
Gate Arm Type | Vanguard |
Input Voltage | 12 DC, 24 DC |
Usage Class | I, II |
Single or Dual Operator | Dual |
Compatible Power Source | Solar Charged |
Solar Wattage | 20 Watt |
Solar Package | Yes |
Actuator Voltage | 12 DC |
Maximum Gate Weight | 1000 lbs. |
Max Gate Opening | 20 ft. |
BlueBUS Compatible | BlueBUS Compatible |
Manufacturer | Nice Apollo Gate Operators |
Condition | New |
Kit Includes | 20 Watt Solar System, Photo Eye, Receiver, Transmitter |
Warranty | Two Year Manufacturer's Limited Warranty |
