Nice Apollo 3500ETL-1K Vanguard 3501 Swing Gate Opener Solar Package With 1050 Control Board and 20 Watt Solar Panel

The Nice Apollo 3500 ETL-1K Vanguard Swing Gate Operator Package with 20 Watt Solar Panel contains all of the core items needed to install a reliable, top-notch and environmentally friendly operator system and boost security in any space. With 20 Watt Solar Panel, mounting hardware and regulator, you can harness the power of the sun to operate you gate in an environmentally friendly fashion. This great operator also has an innovative new arm design and meets the UL325 standard. Add in a two-button transmitter and photo-eye and you have a great operator you can count on in a range of applications.

Part Number: 3500ETL-20S

$2,479.00 each
Free Shipping!


Nice Apollo 3500ETL-1K Vanguard 3501 Swing Gate Opener Solar Package With 1050 Control Board and 20 Watt Solar Panel

The Nice Apollo 3500 Vanguard Swing Gate Operator 20 Watt Solar Package is easy to install, weather-resistant and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount and solar applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, solar panel, transmitter, photo eye set and a limited time warranty.

Included Products:

For full product information of each included component, click on the image to learn more.


• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Operates gates up to 600 lbs. and 16'
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers


• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

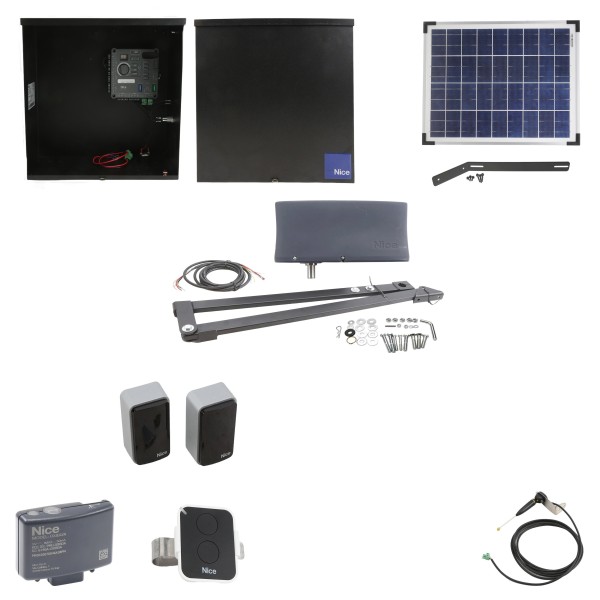

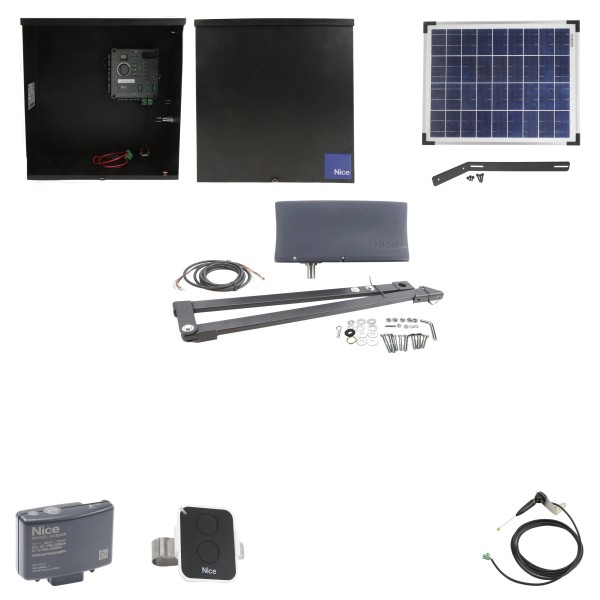

Package Includes:

• 1 x Nice Apollo 3500 Vanguard Swing Gate Operator
• 1 x 20 Watt Solar Panel
• 1 x Photo Eye Pair
• 1 x Nice Apollo ON2E/A Two Button Transmitter


• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)


All Nice Gate Operators has a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Please Note: (Meets UL325 2018) At Least One Entrapment Device will be needed for board to function and meet UL325 2018 (MOFB, EPLOB/A, EPMA/A, EPMOB/A, IRB-MON, IRB-RET)


Installation Manual

Warranty Information

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Name Nice Apollo 3500ETL-1K Vanguard 3501 Swing Gate Opener Solar Package With 1050 Control Board and 20 Watt Solar Panel
SKU 3500ETL-20S
Board Type 1050
Operator Model Brand Vanguard 1050
Gate Arm Type Vanguard
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Solar Package Yes
Maximum Gate Weight 1000 lbs.
Max Gate Opening 20 ft.
BlueBUS Compatible BlueBUS Compatible
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Photo Eye, Receiver, Solar Panel with Hardware, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
Price $2,479.00
