Nice Apollo Vanguard 3501 Single Swing Gate Opener Package with 310 Control Board and 10W Solar Panel

The Nice Apollo Vanguard 3500 ETL-1K Swing Gate Operator Package with 10 Watt Solar Panel contains all of the core items needed to install a reliable, top-notch, and environmentally friendly operator system and boost security in any space. With a 10 Watt Solar Panel, mounting hardware, and regulator, you can harness the power of the sun to operate your gate in an environmentally friendly fashion. This great operator also has an innovative new arm design and meets the UL325 standard. Add in a two-button transmitter and photo-eye and you have a great operator you can count on in a range of applications.

Part Number: VANGUARD-SINGLE-310-10S
$2,453.47 each
$2,453.47 each
Free Shipping!
OR


Details

Nice Apollo Vanguard 3501 Single Swing Gate Opener Package with 310 Control Board and 10W Solar Panel

The Nice Apollo 3500 ETL-1K Vanguard 3501 Swing Gate Operator 10-Watt Solar Package is easy to install, weather-resistant and capable of handling gates up to 1,000 lbs. and 20' long per leaf. Recommended for residential, post mount, and solar applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 12-20 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, solar panel, transmitter, photo-eye pair, and a limited time warranty.

Features:

• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Operates gates up to 600 lbs. and 16'
• Built-In Solar Regulator And Charger
• Internal Seven-Day Programmable Timer
• Weather-Resistant NEMA 3R Control Box
• 12-20 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers

Applications:

• Solar And AC
• Farm And Ranch
• Residential And Light Commercial

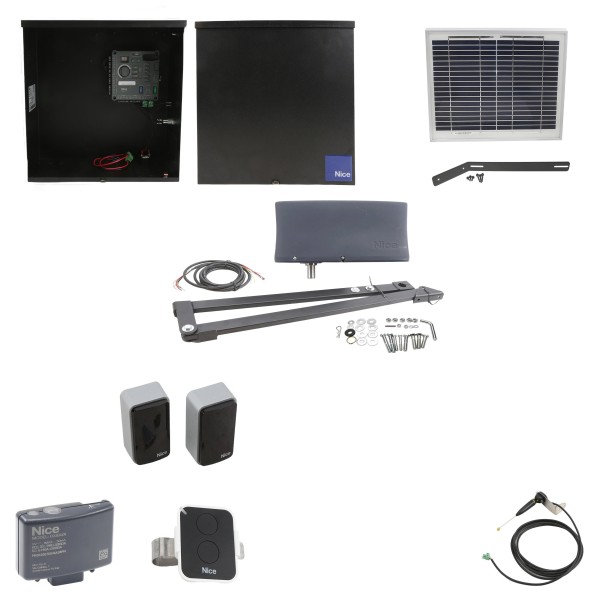

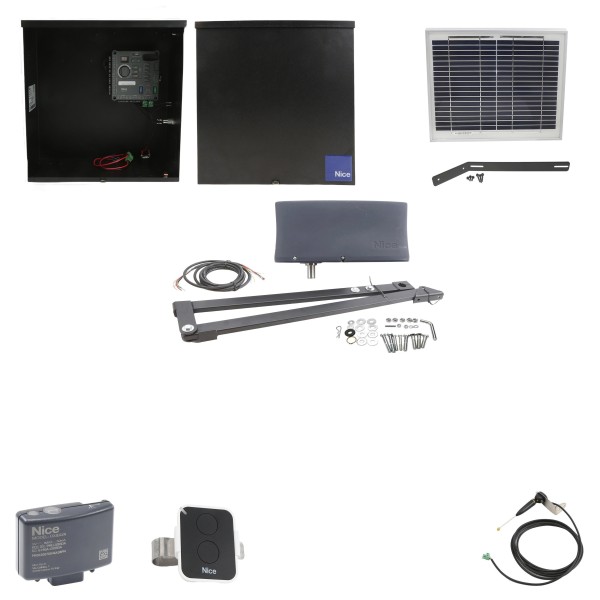

Package Includes:

• 1 x Nice Apollo Vanguard 3500 Swing Gate Operator
• 1 x 35-1 Primary Actuator Arm
• 1 x 35-2 Secondary Actuator Arm
• 1 x 10-Watt Solar Panel
• 1 x Photo Eye Pair
• 1 x Apollo ON2E/A Two Button Transmitter

Specifications:

• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 12-20 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

WARRANTY:

All Nice Gate Operators have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Please Note: (Meets UL325 2018) At Least One Entrapment Device will be needed for board to function and meet UL325 2018 (MOFB, EPLOB/A, EPMA/A, NIR-50, IRB-MON, IRB-RET)
Specifications Warranty Information ON2E/A Transmitter ManualON2E/A Transmitter Specifications
Prefer to Call? (888) 378-1016

Questions about part number VANGUARD-SINGLE-310-10S?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU VANGUARD-SINGLE-310-10S
Board Type Mercury 310
Model Vanguard 35-1
Input Voltage 24 DC
Usage Class I, II
Single or Dual Arm Single
Battery Type No Battery
Compatible Power Source 10W Solar Charged
Solar Wattage 10 Watt
Solar Package Yes
Actuator Voltage 24 DC
Maximum Gate Weight 1300 lbs.
Max Gate Opening 20 ft.
BlueBUS Compatible BlueBUS Compatible
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Antenna, Mounting Bracket(s), Photo Eye, Receiver, Solar Panel, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
