Universal Retro-Reflective Photo Eye UL325-2016 NEMA 4X - EMX IRB-RET
The IRB-RET is a controlled, weather-resistant photoreflective photoeye solution that provides protection for automatic gates and doors. It is ideal for reducing installation costs due to the elimination of the need for seperate transmitters and associated wiring across roadways by using its retroflective configuration, which has an operating range of up to 60 ft. (18.3 m). The IRB-RET is universally designed to be used with a large variety of monitored operators, as well as being compatible with most non-monitored legacy products.
This product is made with a selectable monitoring interface, making installation and set-up simple and easy. It also comes with an intriquite design that minimizes fogging and false triggering proving an easy alignment. Mounting bracket, photo beam, and reflector are also included.
The IRB-RET is UL 325-2018 compliant and comes in an extremely durable NEMA 4X containment box, making it suitable for indoor and outdoor use.
The IRB-RET has 5 monitoring interfaces:
- Normally Closed
- Two-Wire Pulsed (2 freq)
- Two-Wire Pulsed (3 freq)
- Four-Wire Pulsed
- 10K Resistive Termination
*See Specification Sheet for more details.
- Type B1, non-contact sensor
- UL 325-2018 compliant
- Operating range up to 60 ft. (18.3 m)
- NEMA 4X enclosure
- Sensitivity adjustment: potentiometer

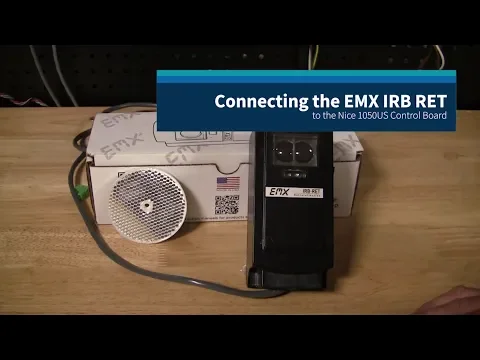

EMX IRB-RET Photo Eye Installation & Instructional Videos:
|Product Type||Photo Eye|
