Nice Apollo 816 Dual Linear Actuator Swing Gate Opener Complete Package with 310 Control Board and 30W Solar Panel

A 30-watt solar panel and two 816-liner actuators are coupled to a 310 Mercury controller as part of the Nice Apollo 310APOLLODUAL-FULLPACKAGE-30S swing gate opening kit. Everything you need for building two automatic solar swing gates is included in this package.
Part Number: APOLLO-DUAL-310-FP-30S
$3,026.33 each
$3,026.33 each
Free Shipping!
OR


Details

Nice Apollo 816 Dual Linear Actuator Swing Gate Opener Complete Package with 310 Control Board and 30W Solar Panel

This exclusive Apollo linear actuator bundle includes the brand-new, simple-to-install Mercury 310 controller kit. This linear actuator is ideal for swinging gates since it operates silently and closes in 14-16 seconds. A gate can move up to 600 pounds of gate weight and pull a maximum gate length of sixteen feet. This package also includes a solar panel to harness the sun's power to power your gate opener.


The Mercury 310 controller is UL 325-approved for residential gate actuators. Installing this controller yourself, without the help of a professional, is fairly simple. The Mercury 310 controller increases battery life and efficiency in standby mode by using a minimal standby current. This controller is compatible with 10K Monitored External Entrapment Zones and BlueBUS because it has two integrated accessory ports.

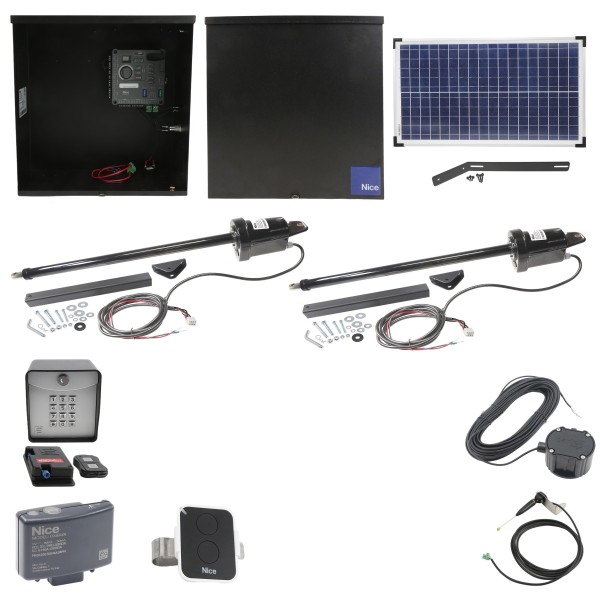

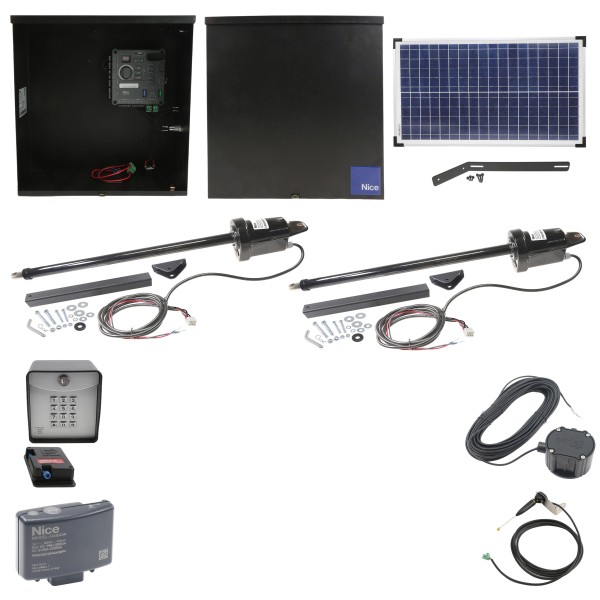

Package Includes:

  • 1 x 816-1 Primary Actuator Arm
  • 1 x 30-Watt Solar Panel
  • 1 x S-14-500 Wireless Digital Keypad and Transceiver
  • 1 x CP4-100 Cartell Self-Contained Free Exit System
  • 1 x OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • 1 x ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • 1 x Mercury 310 UL 325 Residential Smart Control Board
  • 1 x SolarBOX310 Black Powder-Coated Steel Controller Box With Lid
  • 1 x 816X-BLK Secondary Arm
  • 2x Arm Brackets (10015290 & 10000415)

Key Features:

  • Maximum Gate Length: 16 Ft.
  • Maximum Gate Weight: 600 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F
Solar Panel Installation Guide

OXIBD/A Reciver ManualOXIBD/A Receiver Programming Guide

ON2E/A Transmitter ManualON2E/A Transmitter SpecificationsMX4920 Control Board SpecificationsMX4920 Control Board ManualFree Exit System Manual

816-1 Actuator Arm Manual
Prefer to Call? (888) 378-1016

Questions about part number APOLLO-DUAL-310-FP-30S?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU APOLLO-DUAL-310-FP-30S
Board Type Mercury 310
Model Apollo 816-1
Input Voltage 24 DC
Usage Class I, II
Single or Dual Arm Dual
Battery Type No Battery
Compatible Power Source 30W Solar Charged
Solar Wattage 30 Watt
Actuator Voltage 12 DC
Maximum Gate Weight 600 lbs.
Max Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Mounting Bracket(s), Solar Panel
