Nice Apollo Dual 912L Linear Actuator Swing Gate Opener Solar Kit - 10 Watt Solar Bundle With Mercury 310 Control Board

Details

Nice Apollo Dual 912L Linear Actuator Swing Gate Opener Solar Kit - 10 Watt Solar Bundle With Mercury 310 Control Board

This linear package includes all the necessary components for installing a solar linear actuator and an additional Mercury 310 controller. With this swing gate opener, gates up to 20 feet long and 1000 pounds in weight can be opened and closed. It closes smoothly, is quiet, and works effectively in any weather. Your gate's opening and closing times can vary from 14 to 16 seconds, depending on its length.

With a new Mercury 310 Control Board, you can benefit from a UL325 safety-compliant controller that can be used with residential linear swing gate actuators. Even a novice can install it because of its simple setup interface. Complete UL325 compliance is achieved by the Mercury 310 thanks to its sophisticated safety features and automation. Two integrated accessory connectors allow it to work with 10K Monitored External Entrapment or BlueBus sensors.

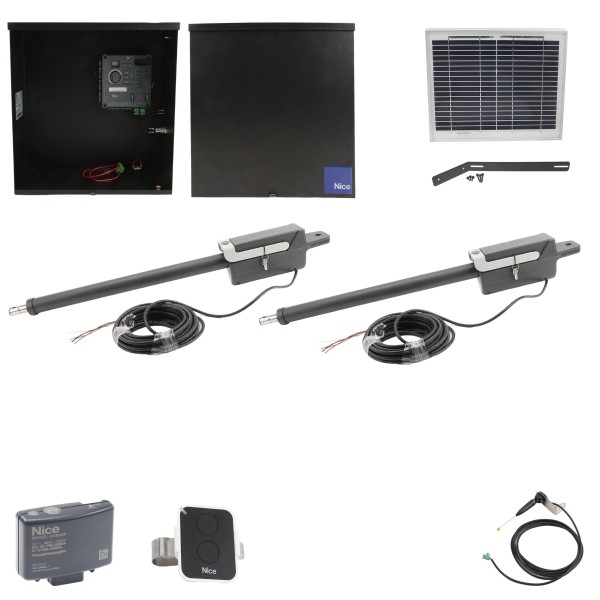

Package Includes:

• (2) Titan 912L-1 Actuator Arm
• (1) 10W 12V Solar Panel
• (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
• (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
• (1) Mercury 310 UL 325 Residential Smart Control Board
• (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

• Maximum Gate Length: 20 Ft.
• Maximum Gate Weight: 1000 Lb.
• ETL Listed (UL 325): Usage Class I, II
• Three-Year Manufacterer's Warranty
• Open/Close Time: 14-16 Seconds
• Electromechanical Drive: Quiet, Field-Repairable, and Powerful
• Created For Single Swing Gate Applications

Technical Specifications:

• Drive: Electromechanical
• Operating Voltage: 12 VDC
• Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
• Communication: BlueBUS, USB, OXI
• User Controls: Mercury 310 Controller
• Relays: None
• Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
• Control Box Dimensions: 18" W x 18" H x 8" D
• Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
• External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
• Operating Temperature: -4 Degrees to 122 Degrees F
