Nice Apollo 912L Linear Actuator Swing Gate Opener Kit - Wireless Keypad, Mercury 310 Control Board, Battery Charger

The 310TITAN-FULLPACKAGE includes a 1/2 Amp battery charger, a 912L-1 linear actuator, and the mercury 310 controller. Everything you need to install your swing gate opener is available in this kit. An ON2/E transmitter is included as well.
$1,569.07 each
$1,569.07 each
Free Shipping!


Nice Apollo 912L Linear Actuator Swing Gate Opener Kit - Wireless Keypad, Mercury 310 Control Board, Battery Charger

This Linear package includes everything you need to install a solar Linear Actuator with a Mercury 310 controller kit. Gates up to 1000 pounds in weight and 20 feet in length can be opened and closed with this swing gate opener. It performs well in all weather conditions, is quiet, and has smooth closing. Your gate's opening and closing times can vary from 14 to 16 seconds, depending on its length.

With a new Mercury 310 Control Board, you can benefit from a UL325 safety-compliant controller that can be used with residential linear swing gate actuators. Even a novice can install it because of its simple setup interface. Complete UL325 compliance is achieved by the Mercury 310 thanks to its sophisticated safety features and automation. Two integrated accessory connectors allow it to work with 10K Monitored External Entrapment or BlueBus sensors.

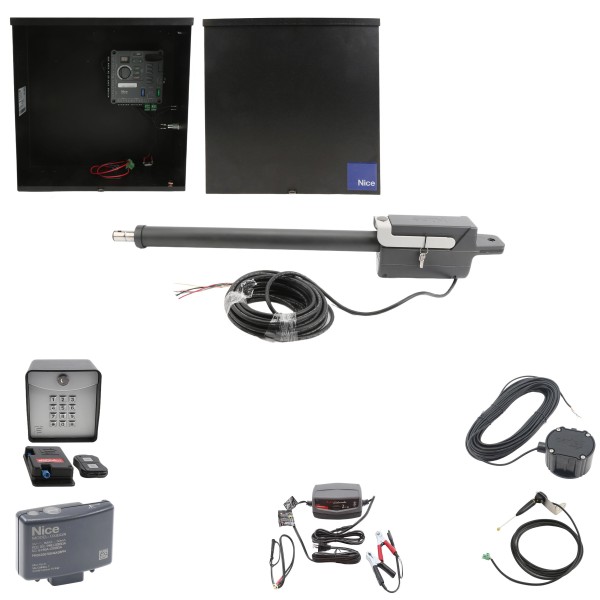

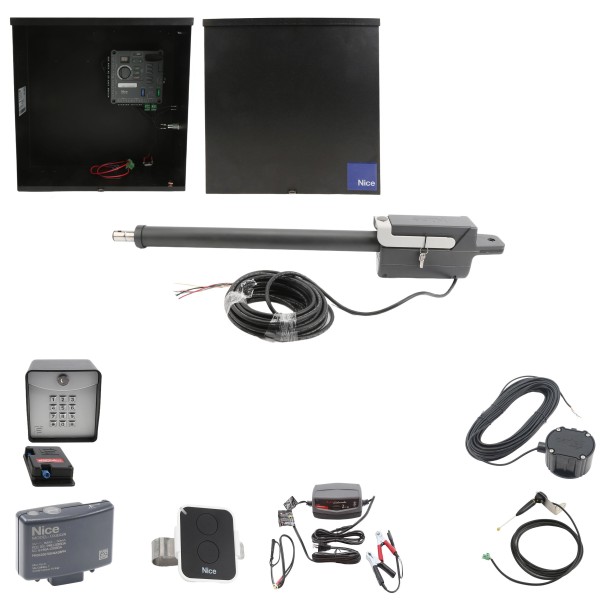

Package Includes:

  • (1) 404C 1 1/2 Amp Battery Charger
  • (1) S-14-500 Wireless Digital Keypad and Transceiver
  • (1) CP4-100 Cartell Self-Contained Free Exit System
  • (1) Titan 912L-1 Actuator Arm
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 20 Ft.
  • Maximum Gate Weight: 1000 lbs.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-20 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

Wireless Keypad Wiring

Wireless Keypad Quick Start Guide

Wireless Keypad Specifications

Free Exit System Manual

Free Exit System Specifications

Name Nice Apollo 912L Linear Actuator Swing Gate Opener Kit - Wireless Keypad, Mercury 310 Control Board, Battery Charger
Board Type Mercury 310
Operator Model Brand Titan 310
Gate Arm Type Titan
Input Voltage 12 DC
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source AC Charged
Actuator Voltage 12 DC
Maximum Gate Weight 1000 lbs.
Max Gate Opening 8 ft. - 20 ft.*
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Battery Charger, Exit Wand, Gate Opener, Keypad, Receiver, Transmitter
Price $1,569.07
