Nice Apollo 912L Linear Actuator Swing Gate Opener Solar Kit - 20 Watt Solar Bundle With Mercury 310 Control Board

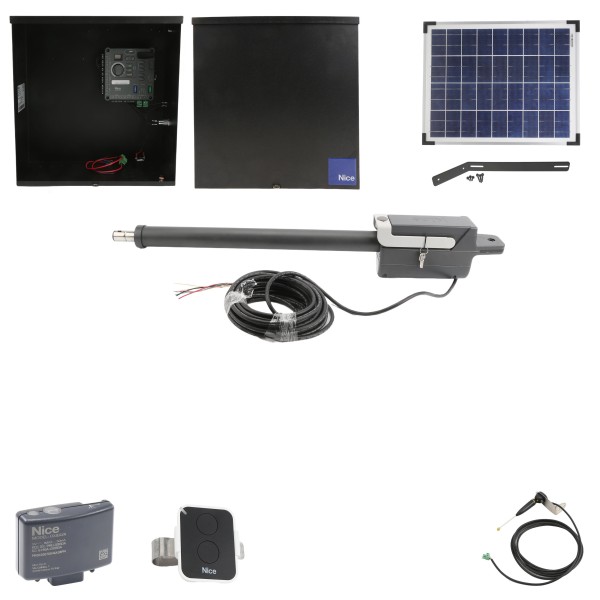

A 20 Watt solar panel and a 912L-1 linear actuator with a Mercury 310 controller make up the 310TITAN-20S kit. Everything you need to install your swing gate opener is included in this package. An ON2/E transmitter is part of it.
Part Number: 310TITAN-20S

$1,274.06 each
Free Shipping!


Nice Apollo 912L Linear Actuator Swing Gate Opener Solar Kit - 20 Watt Solar Bundle With Mercury 310 Control Board

This Linear package includes everything you need to install a solar Linear Actuator with a Mercury 310 controller kit. Gates up to 1000 pounds in weight and 20 feet in length can be opened and closed with this swing gate opener. It performs well in all weather conditions, is quiet, and has smooth closing. The opening and closing times of your gate can vary from 14 to 16 seconds, depending on its length.

With a new Mercury 310 Control Board, you can take advantage of a UL325 safety-compliant controller that can be used with residential linear swing gate actuators. It has an easy-to-setup interface, so even a professional can install it. With advanced safety functions and automation, the Mercury 310 is completely UL325 compliant. It contains two built-in accessory ports to support BlueBus or other 10K Monitored External Entrapment Sensors.

Package Includes:

  • (1)20W 12V Solar Panel
  • (1) Titan 912L-1 Actuator Arm
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 20 Ft.
  • Maximum Gate Weight: 1000 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

Board Type Mercury 310
Operator Titan 310
Arm Type Titan
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Maximum Gate Weight 1000 lbs.
Gate Opening 8 ft. - 20 ft.*
Manufacturer Nice Apollo Gate Operators
Condition New
Package Includes Gate Opener, Receiver, Solar Panel with Hardware, Transmitter
