Nice Apollo 912L 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board

The 310TITAN-10S is a package that consists of a 10-Watt Solar Panel and an 820 Linear Actuator with a Mercury 310 controller. This package has everything you need to install your swing gate opener. It includes an ON2/E transmitter.
Part Number: 310TITAN-10S
$1,199.97 each
$1,199.97 each
Free Shipping!


Nice Apollo 912L 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board

This Linear package has everything you need to set up a solar Linear Actuator with a Mercury 310 controller kit. This swing gate opener can carry gates that weigh up to 1000 pounds or are 20 feet long. It has quiet operation, all-weather performance, and smoothing closing. Depending on the length of your gate, the opening and closing time can range from 14 to 16 seconds.

With a new Mercury 310 Control Board, you can take advantage of a UL325 safety-compliant controller that can be used with residential linear swing gate actuators. It has an easy-to-setup interface, so even a professional can install it. With advanced safety functions and automation, the Mercury 310 is completely UL325 compliant. It contains two built-in accessory ports to support BlueBus or other 10K Monitored External Entrapment Sensors.

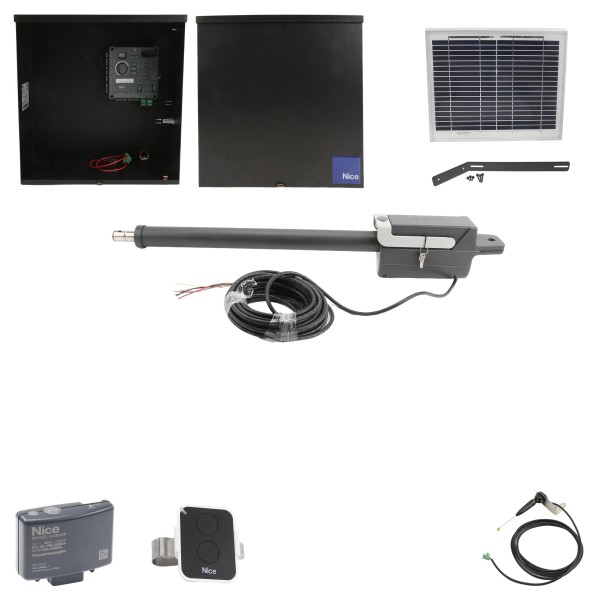

Package Includes:

  • (1)10W 12V Solar Panel
  • (1) Titan 912L-1 Actuator Arm
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 20 Ft.
  • Maximum Gate Weight: 1000 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-20 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

Name Nice Apollo 912L 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board
Board Type Mercury 310
Operator Model Brand Titan 310
Gate Arm Type Titan
Input Voltage 12 DC
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Solar Wattage 10 Watt
Actuator Voltage 12 DC
Maximum Gate Weight 1000 lbs.
Max Gate Opening 8 ft. - 20 ft.*
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes 10 Watt Solar System, Gate Opener, Receiver, Transmitter
Price $1,199.97
