Nice Apollo 816 Dual 20W Solar Swing Gate Opener Full Package w/ Mercury 310 Control Board, Keypad, & Exit System

The Nice Apollo 310APOLLODUAL-FULLPACKAGE-20S swing gate opener kit includes two 816-liner actuators connected to a 310 Mercury controller and a 20-watt solar Panel. This package includes everything you need to build two automatic solar swing gates.
$2,495.57 each
$2,495.57 each
Free Shipping!


Nice Apollo 816 Dual 20W Solar Swing Gate Opener Full Package w/ Mercury 310 Control Board, Keypad, & Exit System

This exclusive Apollo linear actuator bundle includes the brand-new, simple-to-install Mercury 310 controller kit. This linear actuator is ideal for swinging gates since it operates silently and closes in 14-16 seconds. A gate can move up to 600 pounds of gate weight and pull a maximum gate length of sixteen feet. This package also includes a solar panel to harness the sun's power to power your gate opener.

The Mercury 310 controller is UL 325-approved for residential gate actuators. Installing this controller yourself, without the help of a professional, is fairly simple. The Mercury 310 controller increases battery life and efficiency in standby mode by using a minimal standby current. This controller is compatible with 10K Monitored External Entrapment Zones and BlueBUS because it has two integrated accessory ports.

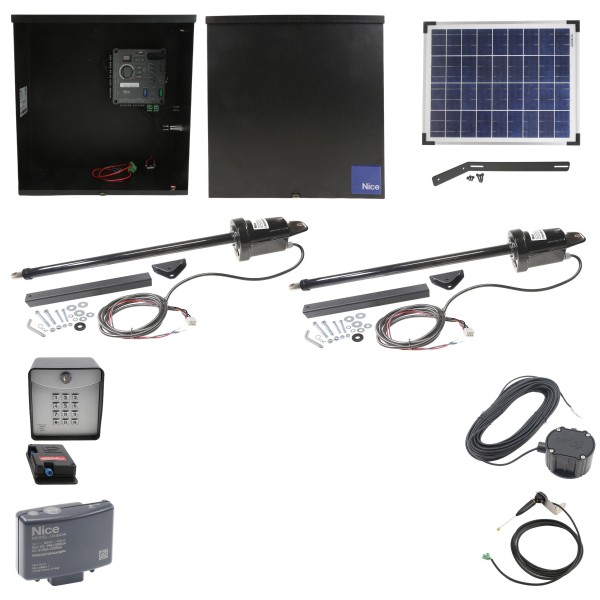

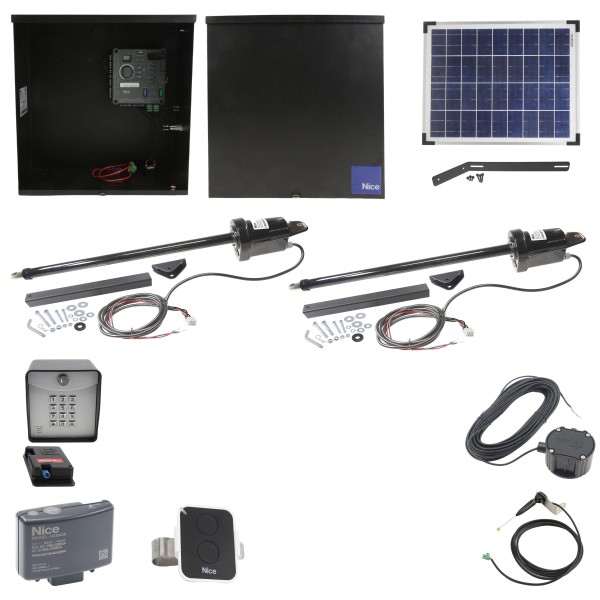

Package Includes:

  • (2) 816-1 Actuator Arms
  • (1) 20 Watt Solar Panel
  • (1) S-14-500 Wireless Digital Keypad and Transceiver
  • (1) CP4-100 Cartell Self-Contained Free Exit System
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 16 Ft.
  • Maximum Gate Weight: 600 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

Free Exit System Manual

816-1 Actuator Arm Manual

Name Nice Apollo 816 Dual 20W Solar Swing Gate Opener Full Package w/ Mercury 310 Control Board, Keypad, & Exit System
Board Type Mercury 310
Operator Model Brand Apollo 310 Dual
Gate Arm Type Apollo
Input Voltage 12 DC
Usage Class I, II
Single or Dual Operator Dual
Compatible Power Source Solar Charged
Solar Wattage 20 Watt
Actuator Voltage 12 DC
Maximum Gate Weight 600 lbs.
Max Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes 20 Watt Solar System, Exit Wand, Gate Opener, Keypad, Receiver, Transmitter
Price $2,495.57
