Nice Apollo Dual 816 Linear Actuator Swing Gate Opener Solar Kit - 30 Watt Solar Bundle With Mercury 310 Control Board

A 310 Mercury controller, a 30-watt solar panel, and two 816-liner actuators are included in the Nice Apollo 310APOLLODUAL-30S swing gate opener package. Everything you need to construct two automatic solar swing gates is included in this package.
Part Number: 310APOLLODUAL-30S

$2,137.99 each
Free Shipping!


Nice Apollo Dual 816 Linear Actuator Swing Gate Opener Solar Kit - 30 Watt Solar Bundle With Mercury 310 Control Board

This exclusive Apollo linear actuator bundle includes the all-new Mercury 310 controller kit that is easy to install and operate. This linear actuator works quietly and closes in 14-16 seconds, making it perfect for swinging gates. A gate's maximum length is sixteen feet, and it can move gate weights of up to 600 pounds.

The Mercury 310 controller is UL 325-approved for residential gate actuators. Installing this controller yourself, without the help of a professional, is fairly simple. The Mercury 310 controller increases battery life and efficiency in standby mode by using a minimal standby current. This controller is compatible with 10K Monitored External Entrapment Zones and BlueBUS because it has two integrated accessory ports.

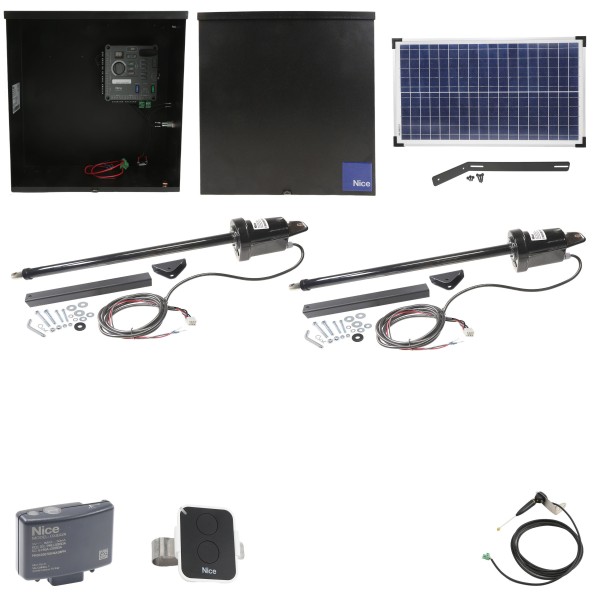

Package Includes:

  • (2) 816-1 Actuator Arms
  • (1) 30 Watt Solar Panel
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 16 Ft.
  • Maximum Gate Weight: 600 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

816-1 Actuator Arm Manual

Board Type Mercury 310
Operator Apollo 310 Dual
Arm Type Apollo
Usage Class I, II
Single or Dual Operator Dual
Compatible Power Source Solar Charged
Maximum Gate Weight 600 lbs.
Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Package Includes Gate Opener, Receiver, Solar Panel with Hardware, Transmitter
