Nice Apollo Dual 816 Linear Actuator Swing Gate Opener Solar Kit - 20 Watt Solar Bundle With Mercury 310 Control Board
Details
Nice Apollo Dual 816 Linear Actuator Swing Gate Opener Solar Kit - 20 Watt Solar Bundle With Mercury 310 Control Board
This exclusive Apollo linear actuator bundle includes the all-new Mercury 310 controller kit that is easy to install and operate. This linear actuator works quietly and closes in 14-16 seconds, making it perfect for swinging gates. A gate's maximum length is sixteen feet, and it can move gate weights of up to 600 pounds.
The Mercury 310 controller is UL 325-approved for residential gate actuators. Installing this controller yourself, without the help of a professional, is fairly simple. The Mercury 310 controller increases battery life and efficiency in standby mode by using a minimal standby current. This controller is compatible with 10K Monitored External Entrapment Zones and BlueBUS because it has two integrated accessory ports.

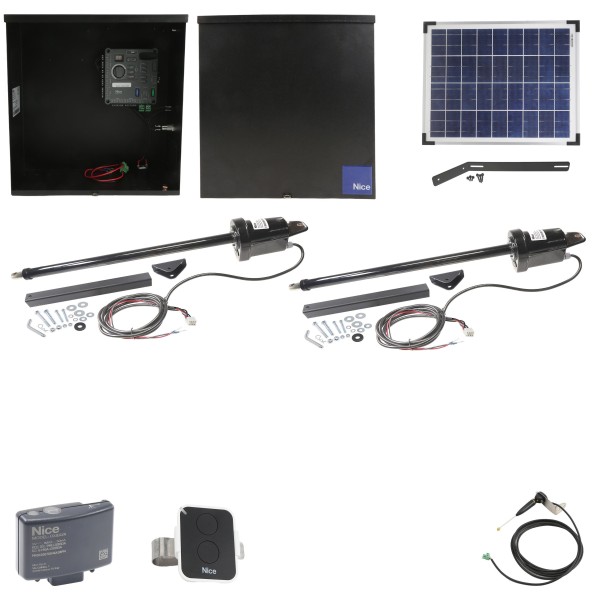

Package Includes:
- (2) 816-1 Actuator Arms
- (1) 20 Watt Solar Panel
- (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
- (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
- (1) Mercury 310 UL 325 Residential Smart Control Board
- (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid
Key Features:
- Maximum Gate Length: 16 Ft.
- Maximum Gate Weight: 600 Lb.
- ETL Listed (UL 325): Usage Class I, II
- Three-Year Manufacterer's Warranty
- Open/Close Time: 14-16 Seconds
- Electromechanical Drive: Quiet, Field-Repairable, and Powerful
- Created For Single Swing Gate Applications
Technical Specifications:
- Drive: Electromechanical
- Operating Voltage: 12 VDC
- Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
- Communication: BlueBUS, USB, OXI
- User Controls: Mercury 310 Controller
- Relays: None
- Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
- Control Box Dimensions: 18" W x 18" H x 8" D
- Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
- External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
- Operating Temperature: -4 Degrees to 122 Degrees F
Solar Panel Installation Guide
OXIBD/A Receiver Programming Guide
ON2E/A Transmitter Specifications
Mercury 310 Control Board Specifications
| Name | Nice Apollo Dual 816 Linear Actuator Swing Gate Opener Solar Kit - 20 Watt Solar Bundle With Mercury 310 Control Board |
|---|---|
| SKU | 310APOLLODUAL-20S |
| Board Type | Mercury 310 |
| Operator Model Brand | Apollo 310 Dual |
| Gate Arm Type | Apollo |
| Usage Class | I, II |
| Single or Dual Operator | Dual |
| Compatible Power Source | Solar Charged |
| Maximum Gate Weight | 600 lbs. |
| Max Gate Opening | 16 ft. |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Gate Opener, Receiver, Solar Panel with Hardware, Transmitter |
| Price | $2,100.39 |
