Nice Apollo 816 Dual 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board

The Nice Apollo 310APOLLODUAL-10S swing gate opener kit includes two 816-liner actuators connected to a 310 Mercury controller and a 10-watt solar panel. This package includes everything you need to build two automatic solar swing gates.
Part Number: 310APOLLODUAL-10S
$2,026.31 each
$2,026.31 each
Free Shipping!


Nice Apollo 816 Dual 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board

This convenient Apollo linear actuator bundle includes the unique Mercury 310 controller kit, which is easy to set up and operate. This linear actuator works quietly and closes in 14-16 seconds, making it perfect for swinging gates. A gate's maximum length is sixteen feet, and it can move gate weights of up to 600 pounds.

The Mercury 310 controller is UL 325-approved for residential gate actuators. Installing this controller yourself, without the help of a professional, is fairly simple. The Mercury 310 controller increases battery life and efficiency in standby mode by using a minimal standby current. This controller is compatible with 10K Monitored External Entrapment Zones and BlueBUS because it has two integrated accessory ports.

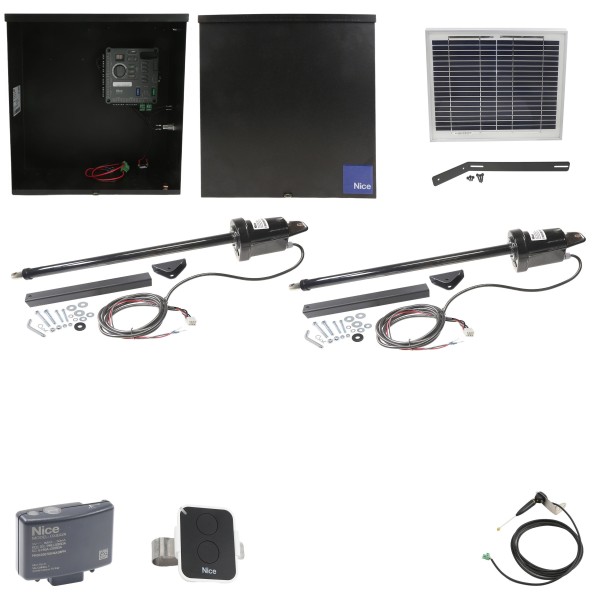

Package Includes:

  • (2) 816-1 Actuator Arms
  • (1) 10 Watt Solar Panel
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 16 Ft.
  • Maximum Gate Weight: 600 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

816-1 Actuator Arm Manual

Name Nice Apollo 816 Dual 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board
Board Type Mercury 310
Operator Model Brand Apollo 310 Dual
Gate Arm Type Apollo
Input Voltage 12 DC
Usage Class I, II
Single or Dual Operator Dual
Compatible Power Source Solar Charged
Solar Wattage 10 Watt
Actuator Voltage 12 DC
Maximum Gate Weight 600 lbs.
Max Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes 10 Watt Solar System, Gate Opener, Receiver, Transmitter
Price $2,026.31
