Nice Apollo 816 Linear Actuator Swing Gate Opener Solar Kit - 10 Watt Solar Bundle With Wireless Keypad, Exit Wand, Mercury 310 Control Board

The Nice Apollo 310APOLLO-FULLPACKAGE-10S swing gate opener package includes a 10-watt solar panel and an 816-liner actuator with a 310 Mercury controller. This kit includes everything you need to install one automatic solar swing gate.

$1,595.15 each
Free Shipping!


Nice Apollo 816 Linear Actuator Swing Gate Opener Solar Kit - 10 Watt Solar Bundle With Wireless Keypad, Exit Wand, Mercury 310 Control Board

This Nice Apollo Linear Actuator Bundle includes the exclusive Mercury 310 controller kit, which is simple to use and configure. This linear actuator is ideal for swinging gates since it shuts in 14 to 16 seconds and operates silently. A gate may weigh up to 600 pounds and have a maximum length of 16 feet.

The Mercury 310 controller is UL 325 certified for residential gate actuators. This controller is easy enough to install without a professional installer. In standby mode, the Mercury 310 controller maximizes battery life and efficiency with a minuscule standby current. Since this controller has two built-in accessory ports, it can work with BlueBUS and 10K Monitored External Entrapment Zones.

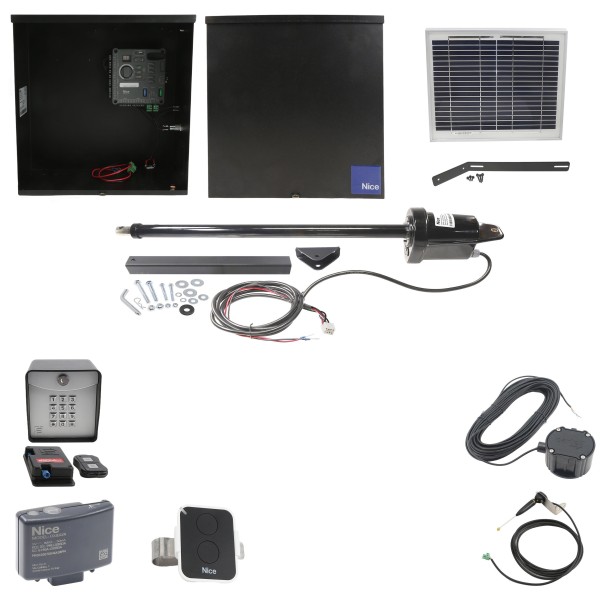

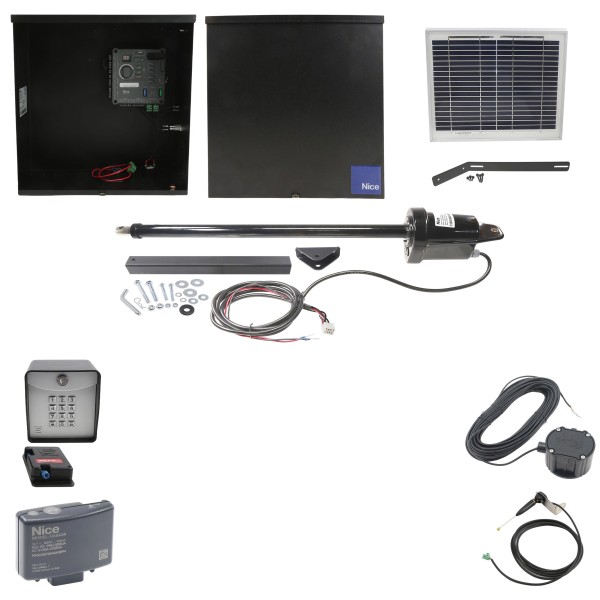

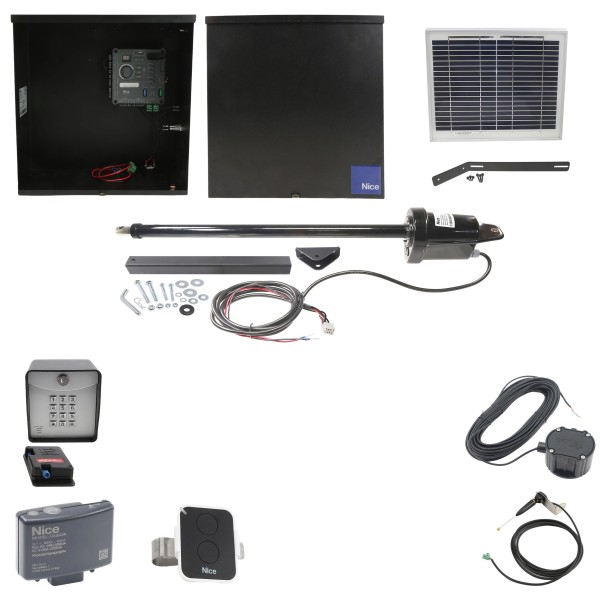

Package Includes:

  • (1) 816-1 Actuator Arm
  • (1) 10 Watt Solar Panel
  • (1) S-14-500 Wireless Digital Keypad and Transceiver
  • (1) CP4-100 Cartell Self-Contained Free Exit System
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 16 Ft.
  • Maximum Gate Weight: 600 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

OXIBD/A Reciver Manual

OXIBD/A Receiver Programming Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

Wireless Keypad Wiring

Wireless Keypad Quick Start Guide

Wireless Keypad Specifications

Free Exit System Manual

816-1 Actuator Arm Manual

Board Type Mercury 310
Operator Apollo 310
Arm Type Apollo
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Maximum Gate Weight 600 lbs.
Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Package Includes Exit Wand, Gate Opener, Keypad, Receiver, Solar Panel with Hardware, Transmitter
