Nice Apollo 1600 Dual Arm Swing Gate Opener Complete Package with 636 Control Board and 10W Solar Panel
Details
Nice Apollo 1600 Dual Arm Swing Gate Opener Complete Package with 636 Control Board and 10W Solar Panel
The Nice Apollo 1600 Dual Swing Gate Operator 10-Watt Solar Package is easy to install, weather-resistant and capable of handling gates up to 600 lbs. and 16' long. Recommended for residential, light commercial, farm, and ranch applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 15 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, aerial antenna, a photo eye set, and a limited time warranty.
Features:
• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Automatic Adjustable Close Timer
• Operates gates up to 600 lbs and 16 ft
• Weather-Resistant NEMA 3R Control Box
• 15 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes, And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers
Applications:
• Farm And Ranch
• Residential And Light Commercial
• Push To Open Or Pull To Open Applications

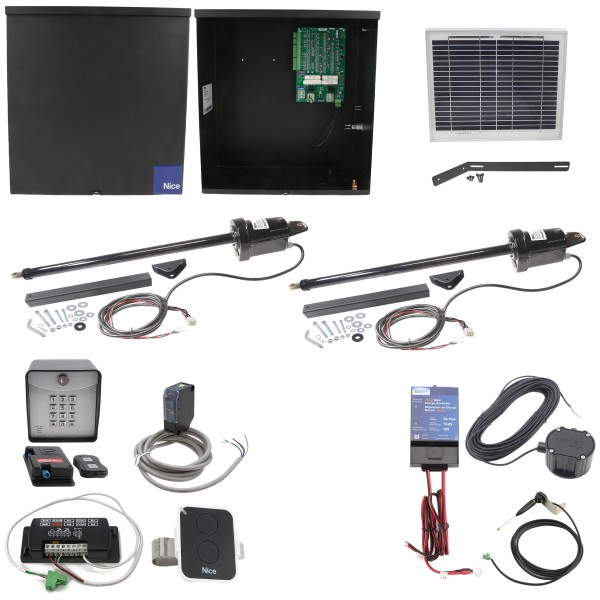

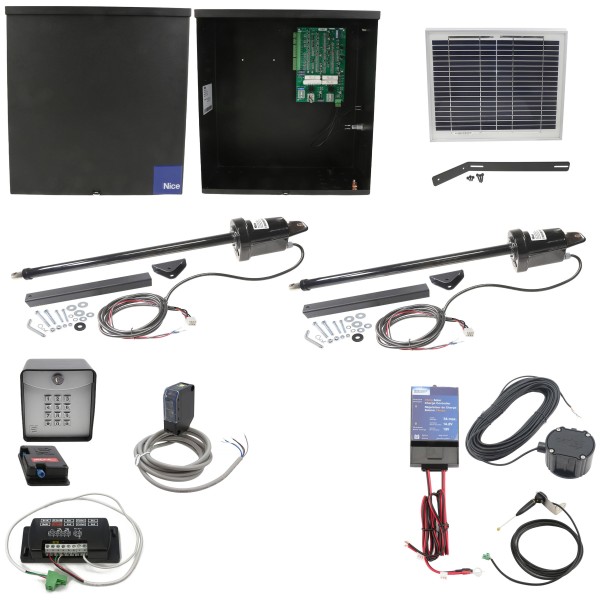

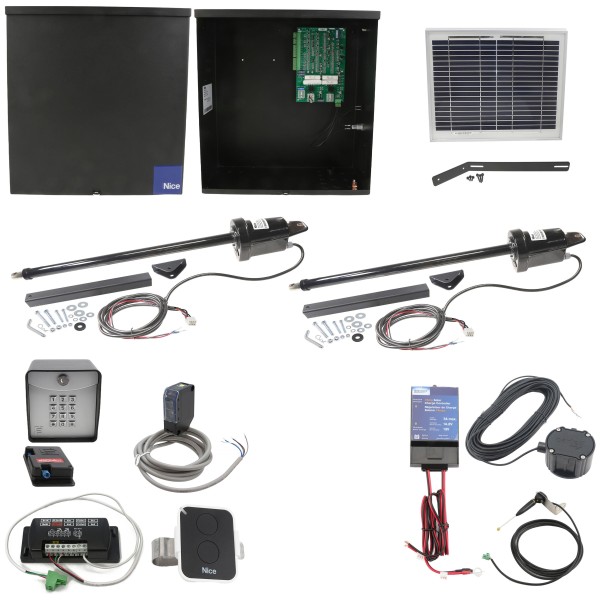

Package Includes:
• 1 x Nice Apollo 1600 Swing Gate Operator
• 1 x Primary 816-BLK Actuator (12 ft. Harness)
• 1 x Secondary 816X-BLK Actuator (42 ft. Harness)
• 1 x 10-Watt Solar Panel
• 1 x CP4-100 5 Wire Exit Wand
• 1 x Ridge-433 Wireless Keypad
• 1 x Safety Reflective Photo Eye Kit
• 1 x Nice Apollo ON2E/A Two Button Transmitter
• 1 x ABF/A Long Range Adjustable Aerial Antenna
• 2 x Arm Brackets (10015290 & 10000415)
Specifications:
• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 14-16 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
Warranty Information:
The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.
Installation Manual Specifications Actuator Installation Warranty Information ON2E/A Transmitter ManualON2E/A Transmitter SpecificationsSKU | APOLLO-DUAL-636-FP-10S |
---|---|
Board Type | 636 |
Model | Apollo 816-1 |
Input Voltage | 12 DC |
Usage Class | I, II |
Single or Dual Arm | Dual |
Battery Type | No Battery |
Compatible Power Source | 10W Solar Charged |
Solar Wattage | 10 Watt |
Solar Package | Yes |
Actuator Voltage | 12 DC |
Maximum Gate Weight | 600 lbs. |
Max Gate Opening | 16 ft. |
Manufacturer | Nice Apollo Gate Operators |
Condition | New |
Kit Includes | 10 Watt Solar System, Antenna, Keypad, Mounting Bracket(s), Photo Eye, Receiver, Solar Charger, Transmitter |
Warranty | Two Year Manufacturer's Limited Warranty |
