Nice Apollo TITAN 912L1 Single Swing Gate Opener Kit w/ 1050 Control Board
Details
Nice Apollo TITAN 912L1 Single Swing Gate Opener Kit w/ 1050 Control Board
The Nice Apollo TITAN12L1 is a single swing gate opener designed for gates up to 600 lbs and 20 feet long or 1,000 lbs and 8 feet long per gate leaf. This model is recommended for residential, farm, and ranch applications and is powered by a 12V DC battery. Featuring the advanced 1050 control board, this unit is easy to install and configure, with modular components for in-the-field maintenance and repair. The TITAN12L1 includes a lockable manual release, accessible limit switch settings, and solar compatibility for enhanced efficiency. Built for longevity, this system ensures smooth and reliable gate operation for years.

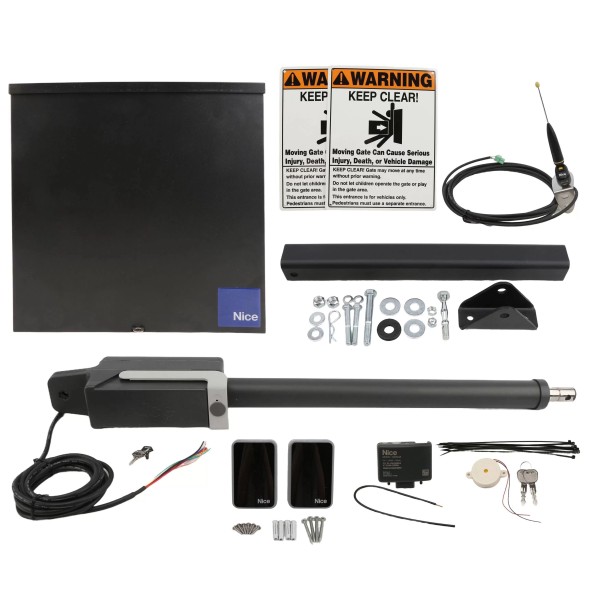

Kit Includes:
- Nice Apollo Titan Actuator (12V with Encoder)
- 1050 Control Board with Box
- 12 ft Harness
- Nice Apollo OXI/A Receiver
- Nice Apollo EPMB/A Medium Through-Beam Photocell
- ABF/A Antenna
- Two Warning Signs
- Mounting Hardware Kit
- Apollo ABF/A Long-Range Adjustable Aerial Antenna
Key Features:
- Supports swing gates up to 20 ft long (600 lbs) or 8 ft long (1,000 lbs)
- Powered by a 12V DC battery with solar capability
- Modular design for easy in-field maintenance
- Lockable manual release for convenience
- Direct retrofit for 816 and 416 actuator arms
- Fast 14-second open cycle
Specifications:
- Operation: 12V DC
- 90-degree opening speed: 14 seconds
- Temperature Range: -4 Degrees F to 122 Degrees F
- Actuator Dimensions: 42" retracted, 71" extended
Note: Meets UL325 2018 compliance w/ at least one entrapment device is required for proper operation.
| SKU | O-TITAN12L1 |
|---|---|
| Actuator Installation Guide | Download PDF file |
| Application | Residential |
| Board Model | 1050 |
| Model | Titan 912L-1 |
| Quick Start Guide (Spanish) | Download PDF file |
| Quick Start Guide | Download PDF file |
| Photo Eye Installation Guide | Download PDF file |
| UL Compliant | Download PDF file |
| Control Box Manual | Download PDF file |
| Solar Compatible | Yes - Solar Operational |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC, 24 DC |
| Usage Class | I, II |
| Single or Dual Arm | Single |
| Compatible Power Source | Solar Charged |
| Actuator Voltage | 12 DC |
| Maximum Gate Weight | 1000 lbs. |
| Max Gate Opening | 20 ft. |
| BlueBUS Compatible | Yes |
| Manual | Download PDF file |
| Spec Sheet | Download PDF file |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Antenna, Photo Eye, Receiver |
| Warranty | Two Year Manufacturer's Limited Warranty |
| Warranty Information | Download PDF file |
