Nice Apollo TITAN12L1 Dual Swing Gate Opener w/ 1050 Control Board

Details

Nice Apollo TITAN12L1 Dual Swing Gate Opener w/ 1050 Control Board

The Nice Apollo TITAN12L1 Dual Swing Gate Operator is from the new series of swing gate openers from Nice Apollo. This gate opener includes the popular 1050 control board.

Use this 12V DC battery-powered linear actuator for double swing gates up to 600 lbs and 20 ft long Per Gate Leaf or 1000 lbs and 8 ft long Per Gate Leaf. Recommended for residential, farm, and ranch applications, the Nice Titan features plug-and-play simplicity with the 1050 control board.

The Nice Apollo Titan +12V DC Dual Swing Gate Operator is easily installed, configured, and maintained. This state-of-the-art gate opener incorporates a lockable manual release, easily accessible limit switch settings, and simple in-the-field maintenance and repair. With advanced technology, the Titan TITAN12L1-DUAL will provide solid performance for hundreds of thousands of open and closed cycles.

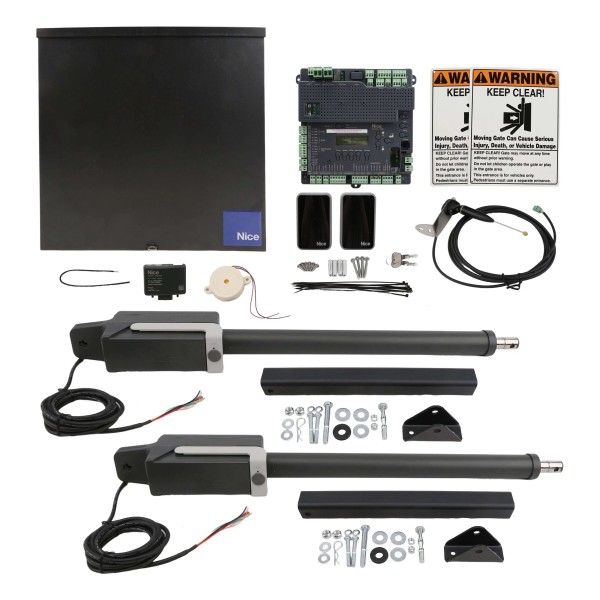

This Gate Opener Kit Includes:

• 1 x Nice Apollo Titan Primary Actuator, 12V With Encoder (With 12 ft. Harness)
• 1 x Nice Apollo Titan Secondary Actuator, 12V With Encoder (With 42 ft. Harness)
• 1 x 1050 Control Board With Box
• 1 x Nice Apollo OXI/A Receiver
• 1 x Nice Apollo EPMOB/A Photo Eye Set
• 1 x Nice Apollo ABF/A Antenna
• 2 x Warning Signs
• 2 x Mounting Hardware Kit
• 1 x Nice Apollo ABF/A Long Range Adjustable Aerial Antenna

Specifications:

• Model: TITAN12L1 912L
• Operation: 12V DC
• 90?? Opening Speed: 14 Seconds
• Cycles per Hour: Varies Based On Charging Capacity
• Working Temperature: -4?? F - +122?? F
• Actuator Dimensions: 42" Retracted - 71" Extended

Features:

• Easy to install
• Solar capable
• Modular design which allows for in-the-field replacement of the 12 VDC drive motor and worm gear train, the limit assembly, and the screw-driven piston arm
• Key lockable manual release for access in power outages and troubleshooting situations
• Retrofit design for direct swap out with 816 and 416 actuator arms - The Titan will bolt directly to the existing gate hardware!

Warranty:

All Nice Gate Openers have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate openers. Gate openers will be registered through DF Supply Inc. at the time of purchase, and the three-year limited-time warranty will be effective after the date of installation.

Please Note: (Meets UL325 2018) At Least One Entrapment Device will be needed for the board to function and meet UL325 2018 (MOFB, EPLOB/A, EPMB/A, EPMA/A, EPMOB/A, IRB-MON, IRB-RET, NIR-50 325)
