Nice Apollo Titan Arm AC Bundle w/ Mercury 310 Controller Swing Gate Opener Kit - O-T310-AC-BL

Details

Nice Apollo Titan Arm AC Bundle w/ Mercury 310 Controller Swing Gate Opener Kit - O-T310-AC-BL

Nice Apollo Titan Arm AC Bundle With Mercury 310 Controller Swing Gate Opener Kit is an easy-to-install, weather-resistant, single swing gate opener kit housed in the AC control box and capable of opening gates weighing up to 600 lbs. for 20' long leaves and 1,000 lbs. for an 8' leaves. This operator package is recommended for quiet operation, smooth closing, and all-weather performance, recommended for residential, farm, and ranch gate solar installations. The unit is secured under a locking cover with optional keyed manual operation and a modular design with simple field-replaceable components. Depending on how large the swinging gate is, it features a typical opening/closing time range of 14-16 seconds in each direction and an automatic adjustable close timer.

The innovative new Mercury 310 Control Board is a UL 325 safety-compliant controller designed for use with residential linear swing gate actuators. It features an easy-to-understand, user-friendly controller interface, meaning no need to hire a professional installer to achieve the full functionality and safety typically needed for controller setup. By integrating redundant internal safety functions and automating many of the typical setup steps, the Mercury 310 ensures full UL 325 safety compliance while also achieving powerful features and accurate configurations. It also boasts an integrated battery charge controller with MPPT technology that optimizes battery charging from various solar panels. When in standby mode, it maximizes battery life and efficiency with its minuscule standby current while also featuring a prominent Battery Health LED warning that alerts the user about any potential power issues. Additionally, it has two built-in accessory ports that are designed for foolproof support of both BlueBUS and 10K Monitored External Entrapment Sensors.

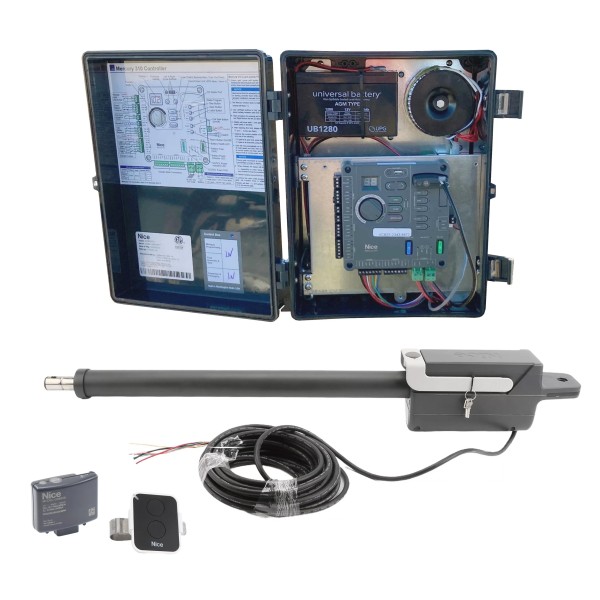

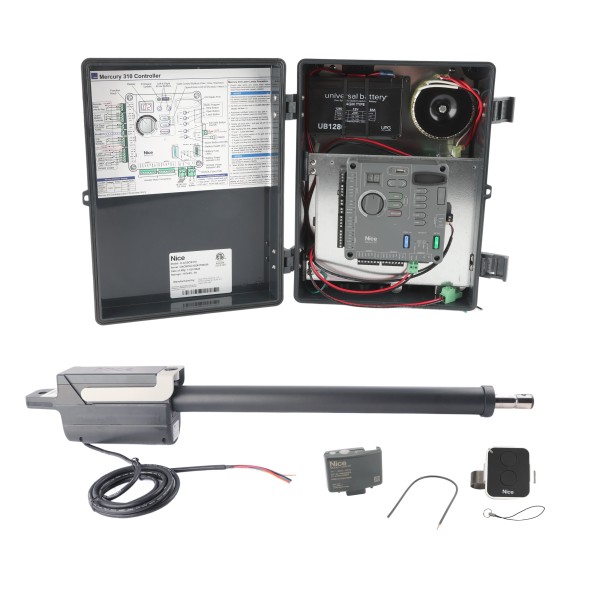

Kit Includes:

• (1) Titan 912L-1 Actuator Arm
• (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
• (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
• (1) Mercury 310 UL 325 Residential Smart Control Board
• (1) Residential AC Control Board Box

Key Features:

• Designed For Single Swing Gate Applications
• Electromechanical Drive - Quiet, Powerful, and Field-Repairable
• Open/Close Time: 14 - 16 Seconds (Depending On Gate Weight and Length)
• Maximum Gate Length: 20 ft.
• Maximum Gate Weight: Up To 600 lbs. For 20 ft. Gate | Up To 1000 lbs. For 8 ft. Gate
• ETL Listed (UL 325): Usage Class I, II
• Three-Year Manufacturer's Limited Warranty

Technical Specifications:

• Duty Cycle: Varies Based On Solar Charging Capacity
• Drive: Electromechanical
• Open/Close Time: 14 - 16 Seconds
• Maximum Gate Length: 20 ft.
• Maximum Gate Weight: Up To 600 lbs. For 20 ft. Gate | Up To 1000 lbs. For 8 ft. Gate
• Input Voltage: 18 VDC to 24 VDC
• Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
• Communication: BlueBUS, USB Port, OXI, Fire Input, 433 MHz Remote
• User Controls: Mercury 310 Controller
• Relays: None
• Arm Dimensions: Total Length - 42.5" Retracted; 69.3" Extended
• Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
• External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
• Operating Temperature: -4?? to 122?? F

Mercury 310 Cutsheet

Mercury 310 Installation Manual

Quickstart Guide

TITAN12L-1 Actuator Installation Manual

BILT 3D Installation Instructions

Warranty Information

Check Out More Mercury 310 Videos Here
