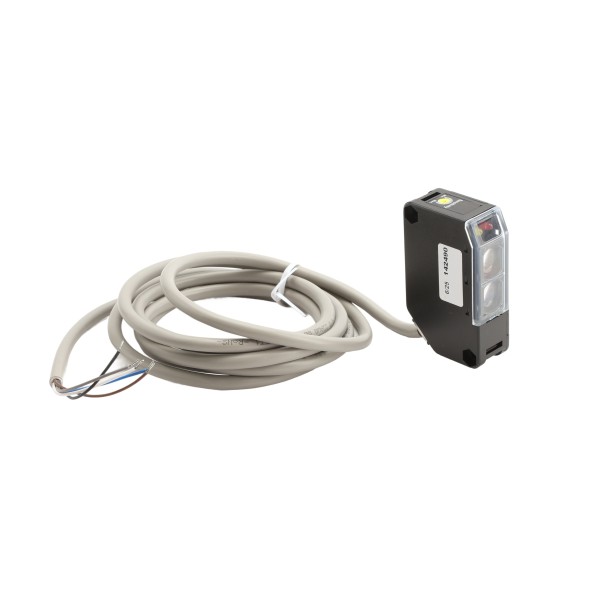

Nice Apollo Reflective Photo Eye Kit - MX4527

The Retro-Reflective Photo Eye, designed and manufactured by Nice Hysecurity, is an external entrapment, type b1, protection device for automatic gates and doors. It has a 50ft. operating range and is UL 325 compliant. With a pulsed near-infrared light beam and reflector, this device does not require wiring on the opposite side of the photo-eye. This photo-eye has a highly compatible design and includes the mounting bracket and hardware necessary for installation.

**Please Note: This Product Is NOT Compatible With Nice Apollo 936 or 636 Control Board.**

Features:

• 50 ft. Operating Range
• Wide Range Operating Voltage
• IP66 IEC Water-Tight Enclosure
• Type: Retro-Reflective Photoeye
• External Non-Contact Sensor (Type B1)
• Configured For 10k Monitored Operation
• Mounting Bracket and Hardware Included
• Compact Size, Easy To Move And Install
• Sensitivity Adjustments Via Potentiometer
• Watertight Package Ensures Reliable Outdoor Installation And Use
• Monitored Entrapment Protection For Overhead Doors, Gates, And Barriers

Photo Eye Kit Includes:

• Photo Eye
• Reflector
• Fasteners
• Mounting Bracket

Specifications:

• IP 66 IEC
• Response Time: 10ms
• Certifications: UL325-2018
• Alignment Indicator: Red LED
• Operating Range: Up To 50 ft.
• Connections: 5 Wires, 6.5' Cable
• Signal Stability Indicator: Yellow LED
• Sensitivity Adjustment: Potentiometer
• Power: 12-30V DC, 24-30V AC @ 60 Hz
• Resistive Termination: 10k Ohm (internal)
• Relay Output: Form C Contacts, 30V AC/DC, 2A
