Nice Apollo 816-1 Arm AC Bundle w/ Mercury 310 Controller Swing Gate Opener Kit - O-A310-AC-BL
Details
Nice Apollo 816-1 Arm AC Bundle w/ Mercury 310 Controller Swing Gate Opener Kit - O-A310-AC-BL
The Nice Apollo 816-1 Arm AC Bundle with Mercury 310 Controller is a weather-resistant, single swing gate opener housed in an AC control box. Designed for gates up to 800 lbs and 16 feet long leaves, this system is ideal for residential, farm, and ranch gate solar installations. The unit features a locking cover with optional keyed manual operation and a modular design for easy field replacement of components. With an opening/closing time of 14-16 seconds per direction and an automatic adjustable close timer, this system ensures reliability and efficiency.

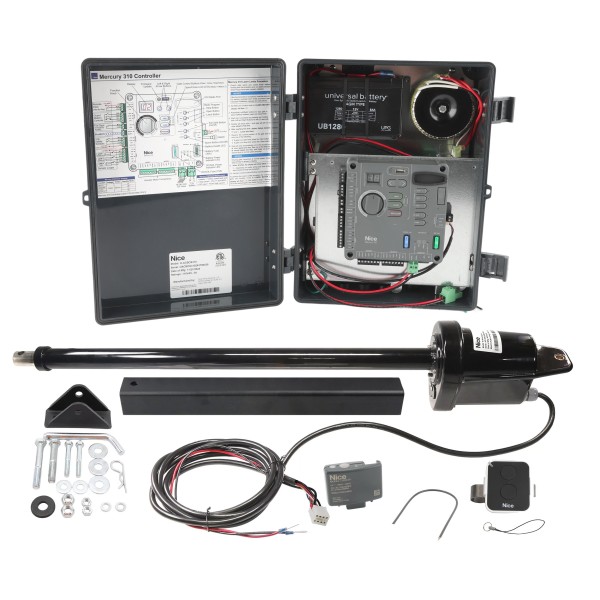

Kit Includes:
- 816-1 Primary Actuator Arm
- OXIBD/A 4-Channel 433MHz Plug-In Receiver
- ON2E/A Era One 2-Channel Transmitter with Visor Clip
- Mercury 310 UL 325 Residential Smart Control Board
- Residential AC Control Board Box
Key Features:
- Designed for single swing gate applications
- Electromechanical drive w/ quiet, powerful, and field-repairable
- Open/Close Time: 14-16 seconds per direction
- Supports gates up to 16 ft long (800 lbs)
- UL 325 safety compliance with BlueBUS and 10K monitored sensors
Technical Specifications:
- Duty Cycle: Varies based on solar charging capacity
- Drive Type: Electromechanical
- Operating Voltage: 12V DC
- Input Voltage: 18V DC to 24V DC
- Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
- Communication: BlueBUS, USB, OXI, Fire Input, 433 MHz Remote
- Arm Dimensions: 42.5" retracted, 69.3" extended
- Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
- External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
- Operating Temperature: -4 degrees F to 122 degrees F
| SKU | O-A310-AC-BL |
|---|---|
| Board Model | Mercury 310 |
| Model | Apollo 816-1 |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Usage Class | I, II |
| Single or Dual Arm | Single |
| Compatible Power Source | Solar Charged |
| Actuator Voltage | 12 DC |
| Maximum Gate Weight | 800 lbs. |
| Max Gate Opening | 16 ft. |
| BlueBUS Compatible | Yes |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Receiver, Transmitter |
| Warranty | Three Year Manufacturer's Limited Warranty |
