Nice Apollo Titan 912L Dual Actuator Swing Gate Opener Complete Package with 310 Control Board and 10W Solar Panel

Use this Linear Nice Apollo 310TITANDUAL-FULLPACKAGE-10S dual swing gate opener kit to offer a complete gate setup for dual gates. This kit has everything you need to install your linear actuator, including a 10 Watt Solar Panel, two 912L Titan actuators, and an ON2E/A transmitter.
Part Number: TITAN-DUAL-310-FP-10S
$2,655.20 each
$2,655.20 each
Free Shipping!
OR


Details

Nice Apollo Titan 912L Dual Actuator Swing Gate Opener Complete Package with 310 Control Board and 10W Solar Panel

Everything you need to install a linear actuator with an added Mercury 310 controller kit is included in this linear package. This swing gate opener can open and close gates up to 20 feet long and 1000 pounds in weight. It is quiet, smoothly closes, and functions well in any weather. Depending on its length, your gate's opening and shutting timings can range from 14 to 16 seconds. This kit includes an added solar panel for solar compatibility.


With a new MX4920 Control Board, you can benefit from a UL325 safety-compliant controller that can be used with residential linear swing gate actuators. Even a novice can install it because of its simple setup interface. Complete UL325 compliance is achieved by the Mercury 310 thanks to its sophisticated safety features and automation. Two integrated accessory connectors allow it to work with 10K Monitored External Entrapment or BlueBus sensors.

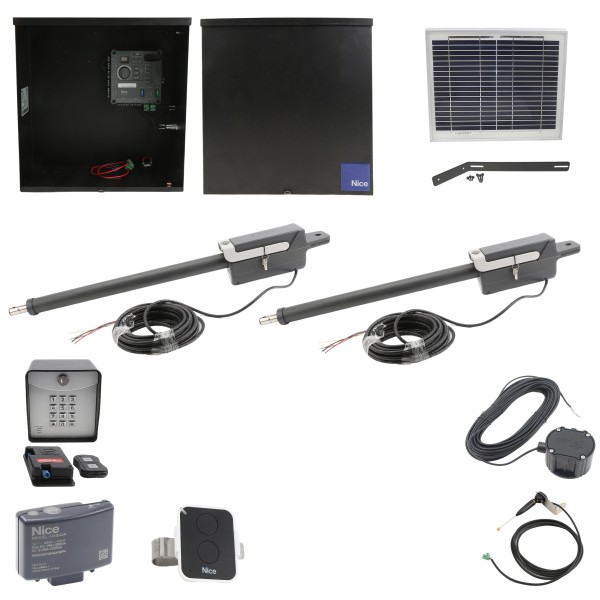

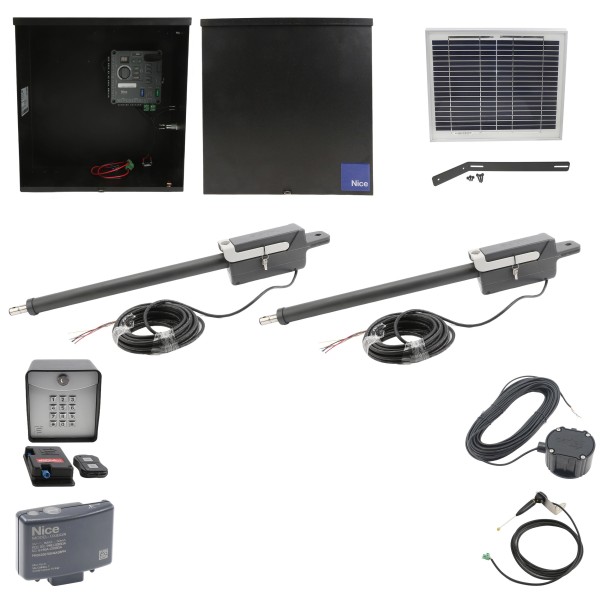

Package Includes:

  • 2 x Titan 912L-1 Actuator Arm
  • 1 x 10-Watt Solar Panel
  • 1 x S-14-500 Wireless Digital Keypad and Transceiver
  • 1 x CP4-100 Cartell Self-Contained Free Exit System
  • 1 x OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • 1 x ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • 1 x Mercury 310 UL 325 Residential Smart Control Board
  • 1 x SolarBOX310 Black Powder-Coated Steel Controller Box With Lid
  • 1 x 912L-2 Secondary Arm
  • 2x Arm Brackets (10015290 & 10000415)

Key Features:

  • Maximum Gate Length: 20 Ft.
  • Maximum Gate Weight: 1000 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F
Solar Panel Installation Guide

ON2E/A Transmitter ManualON2E/A Transmitter SpecificationsMX4920 Control Board SpecificationsMX4920 Control Board ManualFree Exit System ManualFree Exit System Specifications
Prefer to Call? (888) 378-1016

Questions about part number TITAN-DUAL-310-FP-10S?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU TITAN-DUAL-310-FP-10S
Board Type Mercury 310
Model Titan 912L-1
Input Voltage 24 DC
Usage Class I, II
Single or Dual Arm Dual
Battery Type No Battery
Compatible Power Source 10W Solar Charged
Solar Wattage 10 Watt
Actuator Voltage 12 DC
Maximum Gate Weight 1000 lbs.
Max Gate Opening 20 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Antenna, Exit Wand, Keypad, Mounting Bracket(s), Receiver, Solar Panel, Transmitter
