Nice Apollo 816 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board

The Nice Apollo 310APOLLO-10S swing gate opener package includes a 10-watt solar panel and an 816 liner actuator with a 310 Mercury controller. This kit has everything you need to install a single solar swing gate.
Part Number: 310APOLLO-10S
$1,199.97 each
$1,199.97 each
Free Shipping!


Nice Apollo 816 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board

This Nice Apollo Linear Actuator bundle includes the exclusive Mercury 310 controller kit that is easy to operate and installs in no time. This linear actuator is ideal for swinging gates since it has a quiet operation and can typically close in 14-16 seconds. There is a maximum gate weight of up to 600 pounds and a maximum gate length of 16 feet.

The Mercury 310 controller is UL 325 certified for residential gate actuators. This controller is easy enough to install without a professional installer. In standby mode, the Mercury 310 controller maximizes battery life and efficiency with a minuscule standby current. Since this controller has two built-in accessory ports, it can work with BlueBUS and 10K Monitored External Entrapment Zones.

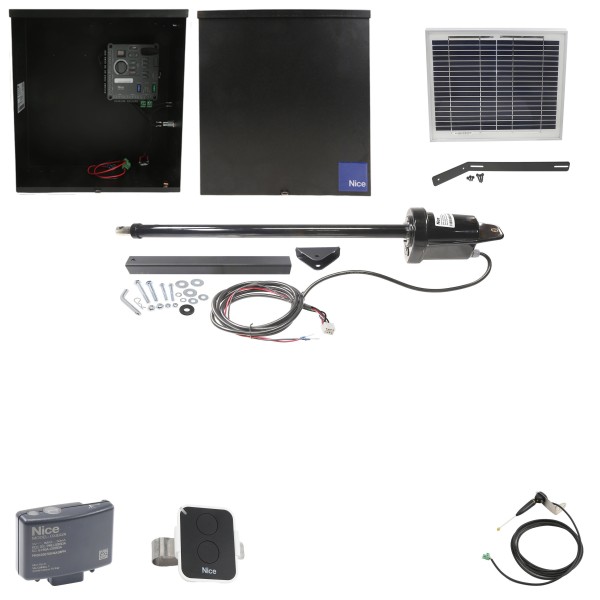

Package Includes:

  • (1) 816-1 Actuator Arm
  • (1) 10 Watt Solar Panel
  • (1) OXIBD/A 4-Channel, 433MHz Plug-In Receiver
  • (1) ON2E/A Era One 2-Channel Transmitter With Visor Clip
  • (1) Mercury 310 UL 325 Residential Smart Control Board
  • (1) SolarBOX310 Black Powder-Coated Steel Controller Box With Lid

Key Features:

  • Maximum Gate Length: 16 Ft.
  • Maximum Gate Weight: 600 Lb.
  • ETL Listed (UL 325): Usage Class I, II
  • Three-Year Manufacterer's Warranty
  • Open/Close Time: 14-16 Seconds
  • Electromechanical Drive: Quiet, Field-Repairable, and Powerful
  • Created For Single Swing Gate Applications

Technical Specifications:

  • Drive: Electromechanical
  • Operating Voltage: 12 VDC
  • Accessory Power: Regulated 12V 500mA Always On (2 Locations); Regulated 12V 500mA Standby Off (2 Locations)
  • Communication: BlueBUS, USB, OXI
  • User Controls: Mercury 310 Controller
  • Relays: None
  • Arm Dimensions: Total Length - 42.2" Retracted; 66" Extended
  • Control Box Dimensions: 18" W x 18" H x 8" D
  • Control Board Dimensions: 7.3" W x 7.2" H x 1.2" D
  • External Entrapment Sensors: BlueBUS and 10K Monitored Sensors
  • Operating Temperature: -4 Degrees to 122 Degrees F

Solar Panel Installation Guide

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Mercury 310 Control Board Specifications

Mercury 310 Control Board Manual

816-1 Actuator Arm Manual

Name Nice Apollo 816 10W Solar Swing Gate Opener Bundle w/ Mercury 310 Control Board
Board Type Mercury 310
Operator Model Brand Apollo 310
Gate Arm Type Apollo
Input Voltage 12 DC
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source Solar Charged
Solar Wattage 10 Watt
Actuator Voltage 12 DC
Maximum Gate Weight 600 lbs.
Max Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes 10 Watt Solar System, Gate Opener, Receiver, Transmitter
Price $1,199.97
