Nice Apollo 1600 Dual Swing Gate Opener Solar Package With 10 Watt Solar Panel

With the Nice Apollo 1600 Dual Swing Gate Operator 10 Watt Solar Package, safely regulating traffic flow into and out of an area is easy and environmentally friendly. This comprehensive kit includes a 10 Watt solar panel and regulator to harness the sun's power, a 433.92 MHz receiver, a compact, easy-to-use transmitter, and the peace of mind of knowing that your gate will open and close whenever you need it.
Part Number: APOLLO-1600-10W
$2,411.53 each
$2,411.53 each
Free Shipping!


Nice Apollo 1600 Dual Swing Gate Opener Solar Package With 10 Watt Solar Panel

The Nice Apollo 1600 Dual Swing Gate Operator 10 Watt Solar Package is easy to install, weather-resistant, and capable of handling gates up to 600 lbs. and 16' long. Recommended for residential, light commercial, farm, and ranch applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 15-second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Solar Package includes the operator, battery charger, transmitter, aerial antenna, and a limited-time warranty.

Included Products:

For full product information of each included component, click on the image to learn more.


• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Automatic Adjustable Close Timer
• Operates gates up to 600 lbs and 16 ft
• Weather-Resistant NEMA 3R Control Box
• 15 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes, And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons, and Receivers


• Farm And Ranch
• Residential And Light Commercial
• Push To Open Or Pull To Open Applications

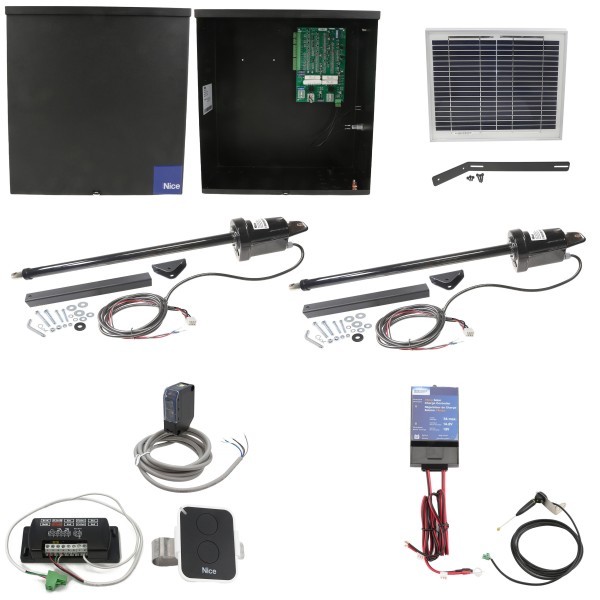

Package Includes:

• 1 x Nice Apollo 1600 Swing Gate Operator
• 1 x Primary 816-BLK Actuator (12 ft. Harness)
• 1 x Primary 816X-BLK Actuator (42 ft. Harness)
• 1 x Regulator
• 1 x Nice Apollo ON2E/A Two Button Transmitter
• 1 x 10 Watt Solar Panel With Mounting Bracket

Click on product images for more details on components.


• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 14-16 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

Warranty Information:

The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase, and the three-year limited-time warranty will be effective after the installation date.

Installation Manual


Actuator Installation

Warranty Information

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Name Nice Apollo 1600 Dual Swing Gate Opener Solar Package With 10 Watt Solar Panel
Board Type 636
Operator Model Brand Apollo 1600 Dual (636)
Gate Arm Type Apollo
Input Voltage 12 DC, 24 DC
Usage Class I, II
Single or Dual Operator Dual
Compatible Power Source Solar Charged
Solar Wattage 10 Watt
Solar Package Yes
Actuator Voltage 12 DC
Maximum Gate Weight 600 lbs.
Max Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Receiver, Solar Panel with Hardware, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
Price $2,411.53
