Details
Nice Apollo 1600 Dual Swing Gate Opener Solar Package With 20 Watt Solar Panel
The Nice Apollo 1600 Dual Swing Gate Operator 20 Watt Solar Package is easy to install, weather-resistant, and capable of handling gates up to 600 lbs. and 16' long. Recommended for residential, light commercial, farm, and ranch applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 15-second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Solar Package includes the operator, battery charger, transmitter, aerial antenna, and a limited-time warranty.
Included Products:
For full product information of each included component, click on the image to learn more.
Features:
• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Automatic Adjustable Close Timer
• Operates gates up to 600 lbs and 16 ft
• Weather-Resistant NEMA 3R Control Box
• 15 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes, And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers
Applications:
• Farm And Ranch
• Residential And Light Commercial
• Push To Open Or Pull To Open Applications

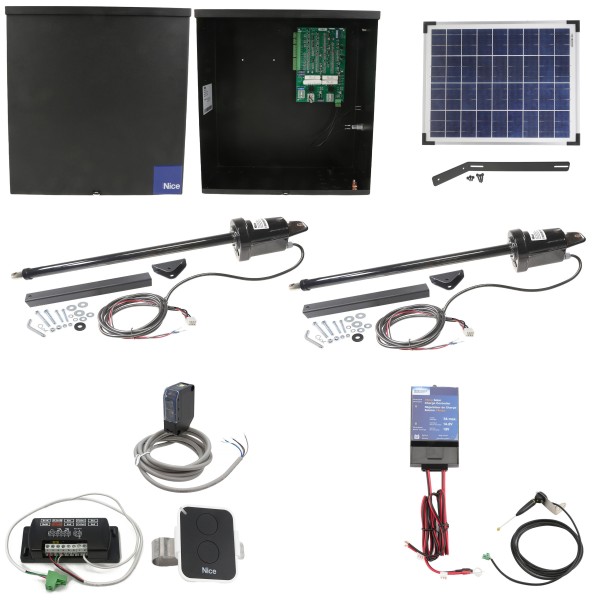

Package Includes:
• 1 x Nice Apollo 1600 Swing Gate Operator
• 1 x Primary 816-BLK Actuator (12 ft. Harness)
• 1 x Primary 816X-BLK Actuator (42 ft. Harness)
• 1 x Regulator
• 1 x Nice Apollo ON2E/A Two Button Transmitter
• 1 x 20 Watt Solar Panel With Mounting Bracket
Click on product images for more details on components.
Specifications:
• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 14-16 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
Warranty Information:
The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase, and the three-year limited-time warranty will be effective after installation.
Installation Gallery



Additional Information
SKU | APOLLO-1600-20W |
---|---|
Board Type | 636 |
Operator | Apollo 1600 Dual (636) |
Arm Type | Apollo |
Single or Dual Operator | Dual |
Maximum Gate Weight | 600 lbs. |
Gate Opening | 16 ft. |
Solar Package | Yes |
Manufacturer | Nice Apollo Gate Operators |
Condition | New |
Package Includes | Receiver, Solar Panel with Hardware, Transmitter |
Warranty | Two Year Manufacturer's Limited Warranty |
