Nice Apollo 1500 Single Arm Swing Gate Opener Package with 636 Control Board and 30W Solar Panel
Details
Nice Apollo 1500 Single Arm Swing Gate Opener Package with 636 Control Board and 30W Solar Panel
The Nice Apollo 1500 Swing Gate 30-Watt Operator Solar Package is easy to install, weather-resistant, and capable of handling gates up to 600 lbs. and 16' long. Recommended for residential, light commercial, farm, and ranch applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit comes with a 30-Watt solar panel, runs on a 12 VDC battery, and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 15-second open/close time in each direction, and an automatic adjustable close timer.
Features:
• FREE SHIPPING
• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Automatic Adjustable Close Timer
• Operates gates up to 600 lbs. and 16'
• Weather-Resistant NEMA 3R Control Box
• 15 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes, And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons, and Receivers
Applications:
• Farm And Ranch
• Residential And Light Commercial
• Push To Open Or Pull To Open Applications

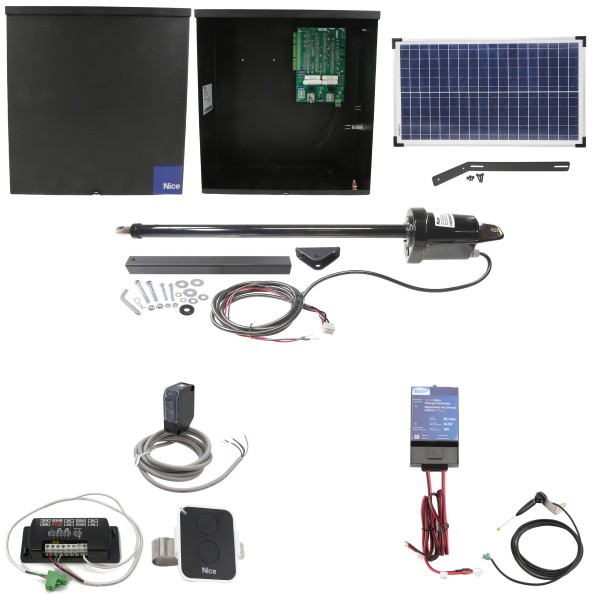

Package Includes:
• 1 x Nice Apollo 1500 Swing Gate Operator
• 1 x Regulator
• 1 x Nice Apollo ON2E/A Two Button Transmitter
• 1 x 30-Watt Solar Panel With Mounting Bracket
• 1 x ABF/A Long Range Adjustable Aerial Antenna
• 1 x NIR-50 Photo Eye
Specifications:
• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 14-16 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)
Warranty Information:
The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase, and the three-year limited-time warranty will be effective after the installation date.
Installation Manual Specifications Actuator Installation Warranty Information BILT 3D Installation Instructions ON2E/A Transmitter ManualON2E/A Transmitter Specifications| SKU | APOLLO-SINGLE-636-30S |
|---|---|
| Board Type | 636 |
| Model | Apollo 816-1 |
| Input Voltage | 12 DC |
| Usage Class | I, II |
| Single or Dual Arm | Single |
| Battery Type | No Battery |
| Compatible Power Source | 30W Solar Charged |
| Solar Wattage | 30 Watt |
| Solar Package | Yes |
| Actuator Voltage | 12 DC |
| Maximum Gate Weight | 600 lbs. |
| Max Gate Opening | 16 ft. |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Kit Includes | Antenna, Mounting Bracket(s), Photo Eye, Receiver, Solar Charger, Solar Panel, Transmitter |
| Warranty | Two Year Manufacturer's Limited Warranty |
