Nice Apollo 1500 AC Swing Gate Opener Full Package w/ 636 Control Board, Photo Eye, Keypad, & Exit System

The Nice Apollo 1500 Swing Gate Operator Full Package includes all of the core components needed to improve safety and security by reliable regulating traffic flow into and out of an area. In addition to a compact, easy-to-use transmitter that make operating an opener a cinch, this package comes with a long-range adjustable antenna to boost its range and a reflective photo eye kit to ensure the system continues to function even in inclement weather.

Part Number: 1500-FULLPACKAGE
$1,750.41 each
$1,750.41 each
Free Shipping!


Nice Apollo 1500 AC Swing Gate Opener Full Package w/ 636 Control Board, Photo Eye, Keypad, & Exit System

The Nice Apollo 1500 Swing Gate Operator is easy to install, weather-resistant and capable of handling gates up to 600 lbs. and 16' long. Recommended for residential, light commercial, farm, and ranch applications, this operator package includes everything needed for a fully functioning swing gate operator. The unit runs on a 12 VDC battery and is solar or AC rechargeable. It features adjustable current sensitivity for automatic safety reverse, a 15 second open/close time in each direction, and an automatic adjustable close timer. This high-quality Swing Gate Operator Full Package includes the operator, battery charger, transmitter, wireless keypad, free exit wand, aerial antenna, a photo eye set, and a limited time warranty.

Included Products:

For full product information of each included component, click on the image to learn more.


• Solar Or AC Rechargeable
• Includes A Limited Time Warranty
• Automatic Adjustable Close Timer
• Operates gates up to 600 lbs and 16 ft
• Weather-Resistant NEMA 3R Control Box
• 15 Second Open/Close Time In Each Direction
• Inputs For Safety Edges, Exit Probes, And Keypads
• Adjustable Current Sensitivity For Automatic Safety Reverse
• Budget-Friendly All Included Package Makes Buying And Installing Simple
• Inputs For Telephone Entry Systems, Intercoms, Push Buttons and Receivers


• Farm And Ranch
• Residential And Light Commercial
• Push To Open Or Pull To Open Applications

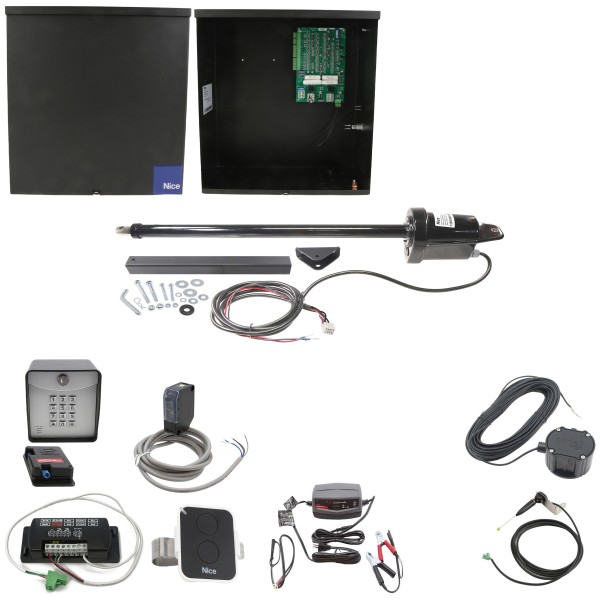

Package Includes:

• 1 x Nice Apollo 1500 Swing Gate Operator
• 1 x Battery Charger
• 1 x CP4-100 5 Wire Exit Wand
• 1 x Ridge-433 Wireless Keypad
• 1 x Safety Reflective Photo Eye Kit
• 1 x Nice Apollo ON2E/A Two Button Transmitter
• 1 x Apollo ABF/A Long Range Adjustable Aerial Antenna

Click on product images for more details on components.


• Operating Voltage: 12VDC
• Current Draw: 10 mA
• Speed: 14-16 Seconds (90 degrees)
• Shipping Info: 2 boxes, 64 lbs. (29 kg)
• Control Panel Material: Black Powder-Coated Finish
• Battery/Control Box Panel Dimensions: 18" (46cm) x 18" (46cm) x 8" (20cm)

Warranty Information:

The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited-time warranty is offered for registered gate operators. Gate operators will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

Installation Manual


Actuator Installation

Warranty Information

BILT 3D Installation Instructions

ON2E/A Transmitter Manual

ON2E/A Transmitter Specifications

Free Exit System Manual

Free Exit System Specifications

Name Nice Apollo 1500 AC Swing Gate Opener Full Package w/ 636 Control Board, Photo Eye, Keypad, & Exit System
Board Type 636
Operator Model Brand Apollo 1500 (636)
Gate Arm Type Apollo
Input Voltage 12 DC, 24 DC
Usage Class I, II
Single or Dual Operator Single
Compatible Power Source AC Charged
Actuator Voltage 12 DC
Maximum Gate Weight 600 lbs.
Max Gate Opening 16 ft.
Manufacturer Nice Apollo Gate Operators
Condition New
Kit Includes Antenna, Battery Charger, Exit Wand, Keypad, Photo Eye, Transmitter
Warranty Two Year Manufacturer's Limited Warranty
Price $1,750.41
