Cartell CW-SYS Dual-Purpose Wireless Vehicle Detector Free-Exit System - Wireless Gate Exit Wand

Cartell CW-SYS Dual-Purpose Wireless Vehicle Detector Free-Exit System - Wireless Gate Exit Wand
$322.50

The CW-SYS Wireless Driveway System by Cartell is designed for wirelessly connecting to an existing security/home automation system, creating a free-exit system when connected to electric gate openers, or as a vehicle detection system by pairing with cameras, sounders, and other accessories.


OR

Call (800) 878-7829

Details

The CW-SYS Wireless Driveway System by Cartell is designed for wirelessly adding vehicle detection to an existing security/home automation system, allowing connection to cameras, sounders, and other accessories. Additionally, this wireless system can be connected to an electric gate opener for use as a free exit system, whether being used in residential or commercial applications. The sensor puck is a self-contained housing that includes an internal transmitter and antenna, capable of reaching ranges of up to 1,000 ft. Installation is quick, easy, and versatile. It can typically be done in under an hour and requires absolutely no trenching. Simply install the sensor puck onto a nearby immovable object (such as a post) along the entrance, in the ground near, or in the driveway or entry point.

*Please Note: This Product Is NOT Compatible With Solar Powered Gate Openers.

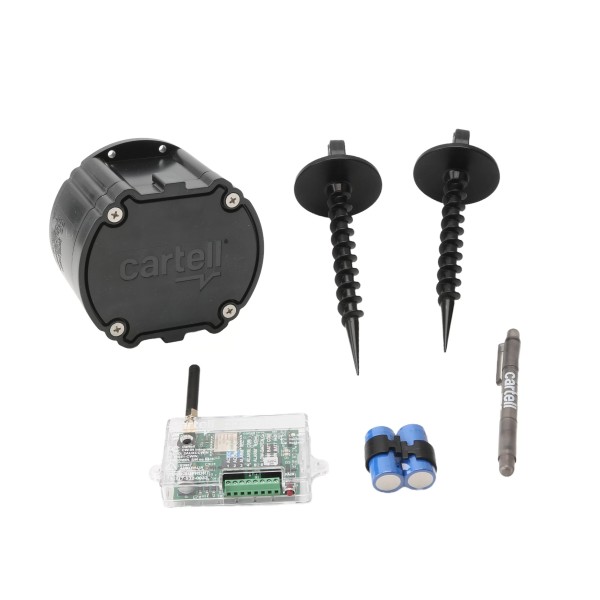

System Includes:

  • Sensor Puck
  • Integrator With 3' Coaxial Antenna Cable
  • (2) Auger Screws For In-Ground Installations
  • (2) CR123A Batteries With Battery Terminal Clips
  • Terminal Block Screwdriver

Features & Benefits:

  • Versatile
  • Easy To Install
  • Designed For All Driveways
  • Durable Design For All Weather Conditions
  • Superior Radio Range & Dependable, Long-Lasting Battery Life

Technical Specifications

Product Sensor Puck Integrator
Power Required: 2 - CR123A Batteries (6V) 8-24 VAC; 8-30 VDC
Standby Current: 22 Microamps (μA) 25 Milliamps (mA)
Alarm Current: 130 Milliamps (mA) 40-80 Milliamps (mA)
Relay Time: - 2 Seconds
Relay Contacts: - SPDT, N.O. or N.C. (Form C)
Relay Contact Rating: - 2 Amp/24 VDC (1 mA at 5 VDC Min. Load)
Estimated Radio Range: Up To 1,000 ft. (In-Ground, Line-of-Sight, No Obstructions)
Estimated Battery Life: 1-3 Years -
Enclosure Rating: IP68 -
Strength Rating: 9.39 Ton-Force (8614 kgf) -
Temperature Range: -25°F to 140°F -
Dimensions: 4.5" Diameter x 2.5 H 3.25" L x 2" H x 0.875" D

Installation Manual

Specification Sheet

Additional Information

SKU CW-SYS
Manufacturer Nice Apollo Gate Operators
Condition New
