Details

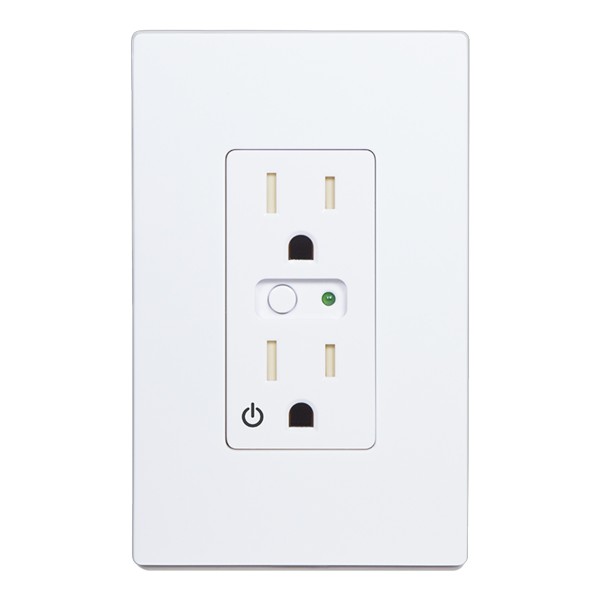

2GIG Z-Wave Single Wall Outlet - WO15EMZ5-1

The 2GIG Z-Wave Single Wall Outlet replaces a standard duplex receptacle to deliver smart functionality to your electrical system. The bottom outlet provides Z-Wave controlled ON/OFF switching, while the top outlet remains always powered for convenience. This device also functions as a Z-Wave repeater to extend network coverage and integrates seamlessly with other Nice North America Z-Wave enabled products. Built to NEC 2008 tamper-resistant requirements, the outlet adds a layer of safety while offering reliable connectivity. Supporting loads up to 15 amps resistive, 1/2 HP motors, and 600W incandescent lighting, this outlet is a versatile addition to any smart home.

Features

• Replaces a standard duplex receptacle for smart control
• Bottom outlet provides Z-Wave controlled ON/OFF functionality; top outlet remains always powered
• Integrates with other Nice North America Z-Wave enabled products
• Functions as a Z-Wave wireless repeater to extend network range
• Tamper-resistant design compliant with 2008 National Electric Code (NEC) requirements
• Supports network-wide inclusion, scene command class, and security beaming

Specifications

• Model: WO15Z-1
• Signal Frequency: 908.42 MHz
• Input: 120V, 15A, 60Hz (requires Neutral)
• Maximum Load:
  • Resistive: 15A (1800W) maximum, 120 VAC
  • Motor: 1/2 HP maximum, 120 VAC
  • Incandescent: 600W maximum, 120 VAC
• Range: Up to 100 feet between controller and nearest Z-Wave device
• Compliance: NEC 2008 tamper-resistant requirement
