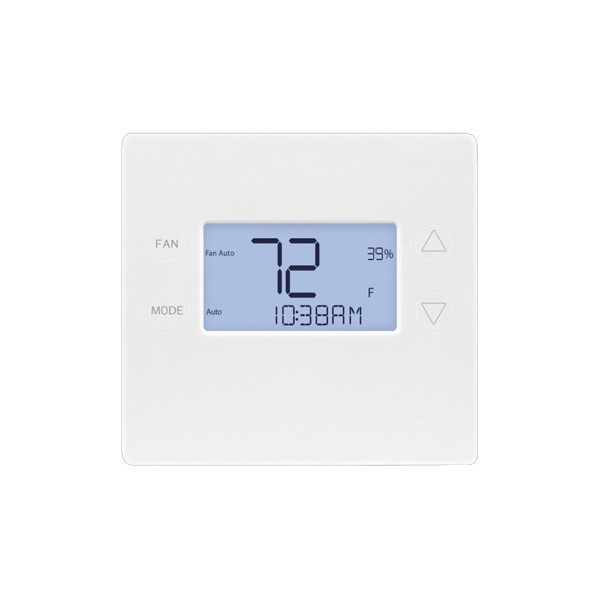

2GIG Z-Wave Programmable Thermostat - 2GIG-STZ-1

Details

2GIG Z-Wave Programmable Thermostat - 2GIG-STZ-1

Features

• 700-series Z-Wave Plus support for longer range wireless capability
• Capacitive touch buttons with brighter LED screen
• Supports 2-stage cooling and 3-stage heating
• Humidity sensing and control
• SmartStart support with S2 authentication security
• Battery-powered option eliminates need to run new C" wire
• Seamlessly adjusts comfort settings from panel, thermostat, or mobile app
• Integrates with Alarm.com and most Z-Wave hubs
• Works with 2GIG GC2e (FW1.23) and GC3/GC3e (FW3.2.5) panels
• Not compatible with GC2 panels

Specifications

• Display: Fixed format with white backlight
• Display Options: Heating and Cooling Setpoint, Clock, Humidity
• System Modes: Off, Heat, Cool, Auto, E-Heat
• Fan Modes: Auto and On
• HVAC Compatibility: Central HVAC or split systems with separate RH/RC transformers
• Standard Gas/Electric HVAC: 3 stage heating, 2 stage cooling
• Heat Pump HVAC: 3 stage heating, 2 stage cooling
• Heat Pump Change Over Valve: Selectable (O or B output)
• Emergency Heat: Selectable in Heat Pump mode
• System Protection: 5-minute compressor short cycle delay (adjustable)
• Temperature Setpoint Range: Heat 32-90 Degrees F (0-32 Degrees C); Cool 61-122 Degrees F (16-50 Degrees C)
• Relative Humidity: 5%-95% non-condensing
• Power: Battery or 24V AC
• Z-Wave Frequency: 908.42 MHz, 916 MHz
• Wiring Connections: C, RC, RH, W1, W2/O, Y1, Y2, G, W3, HUM+, HUM-
• Enclosure: ABS Plastic, white
• Dimensions: 5.75 x 4.5 x 1 in (14.6 x 11.4 x 2.5 cm)
• Weight: 1 lb (0.45 kg)
• Certifications: FCC, Industry Canada, Z-Wave Plus V2
• Package Includes: Thermostat, 4 AA batteries, mounting hardware, installation manual, quick start guide
