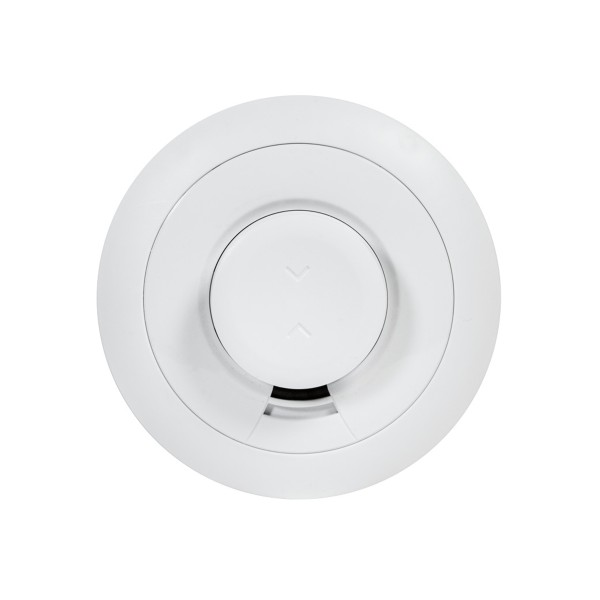

2GIG Smoke/Heat/Freeze Sensor - 2GIG-SMKT8-345

The 2GIG Smoke/Heat/Freeze Sensor is a versatile life-safety device designed to detect smoke, rapid temperature rise, and extreme high or low temperatures. Meeting UL217 8th edition and UL268 7th edition standards, it is built to recognize smoke from synthetic materials while minimizing false alarms with advanced detection algorithms. The sensor features an optical smoke chamber and provides audible alarms greater than 85 dB at 10 feet for immediate notification. With a wireless range of 350 feet, compatibility with 2GIG panels, and supervisory reporting every 70 minutes, it ensures reliable integration. Powered by two CR123A lithium batteries with a projected 10-year life, the 2GIG Smoke/Heat/Freeze Sensor offers long-term, dependable fire and temperature protection.

Features

• Meets new UL217 8th edition and UL268 7th edition requirements
• Designed to recognize smoke from synthetic materials
• Monitors and reports on excessive temperature variations
• Optical smoke detection chamber for improved smoke detection
• Rate of Rise alert: triggers alarm when temperature is 104 degrees F and rises 15 degrees or more in one minute
• Extreme high and low temperature alerts
• Advanced detection algorithms reduce nuisance alarms from cooking
• Long-lasting battery with projected life of 10 years

Specifications

• Wireless Signal Range: 350 ft (106.7 m) open air with Wireless Control Panel
• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG-SMKT8-345 works with 2GIG Panels
• Supervisory Interval: 70 minutes
• Dimensions (D x H): 4.7 x 2.3 in (120 x 58 mm)
• Weight: 0.46 lbs
• Audible Alarm: Greater than 85 dB at 10 ft (3 m) minimum
• High Temperature Level: 134 degrees F ~ 4 degrees F
• High Temperature Rate of Rise: Above 104 degrees F and increases 15 degrees F or more in one minute
• Low Temperature Level: 40 degrees F ~ 4 degrees F, reset at 45 degrees F ~ 4 degrees F
• Operating Temperature: -40 to 100 degrees F (-40 to 37.8 degrees C)
• Operating Relative Humidity: 15% to 95%, non-condensing
• Batteries: 2 x CR123A
• Regulatory Listings: UL268 7th Edition, CAN/ULC S529 7th Edition, CSFM
• Projected Battery Life: 10 years
