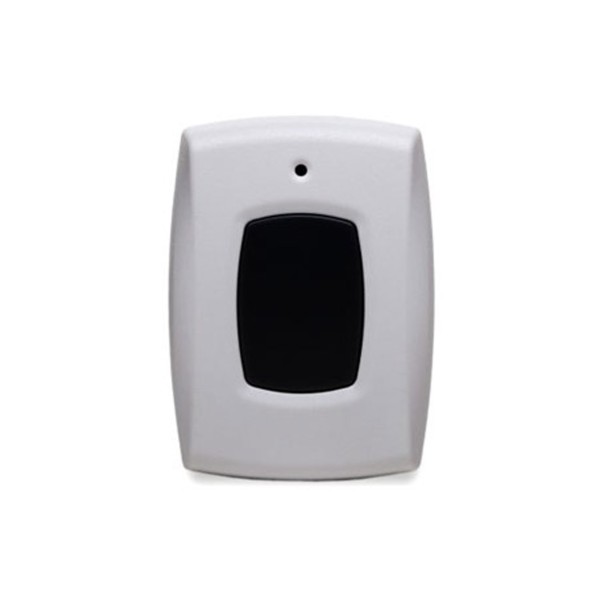

2GIG Panic Button - 2GIG-PANIC1-345

Details

2GIG Panic Button - 2GIG-PANIC1-345

The 2GIG Panic Button is a versatile emergency alert device designed to deliver instant notifications to your security system. With wide-angle wireless coverage up to 350 feet in open air, it ensures dependable performance when quick action is needed. The compact design makes it easy to mount on walls or carry discreetly, providing flexibility for residential and commercial applications. Operating on the 345 MHz frequency, the panic button transmits an emergency signal within range of the control panel, even when the system is disarmed. Fully supervised and powered by a long-lasting lithium battery, the 2GIG Panic Button is a dependable safeguard for personal safety.

Features

• Wide-angle motion protection with up to 30 ft x 50 ft coverage
• Pet immunity selectable for animals weighing 33 lbs or 55 lbs (default)
• Selectable high or low sensitivity mode via jumper
• Compact wall-mounted design for residential and commercial use
• Available in non-encrypted (PIR1-345) and encrypted eSeries (PIR1E-345) versions
• Battery-powered with long-lasting lithium power source
• Communicates with control panel using 345 MHz frequency

Specifications

• Wireless Signal Range: 350 ft (106.7 m) open air with Wireless Control Panel
• Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Unique ID Codes: Over 1 million code combinations
• Supervisory Interval: 70 minutes
• Sensor Type: Quad element
• Pet Immunity: Selectable 33 lbs (15 kg) or 55 lbs (25 kg, default)
• Sensitivity: High or Low (default Low)
• Suggested Mounting Height: 7.5 ft (2.3 m)
• Sensor Range: 30 ft (9.1 m) x 50 ft (15.2 m)
• Maximum Horizontal Sensing Angle: 100 Degree
• Dimensions (L x W x H): 3.2 x 2.5 x 1.9 in (8.12 x 6.35 x 4.82 cm)
• Weight (with battery and bracket): 3.7 oz (104.9 g)
• Housing Material: ABS Plastic
• Color: White
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 90%, non-condensing
• Battery: One CR123A 3V Lithium (included)
• Certifications: ETL, FCC, IC
