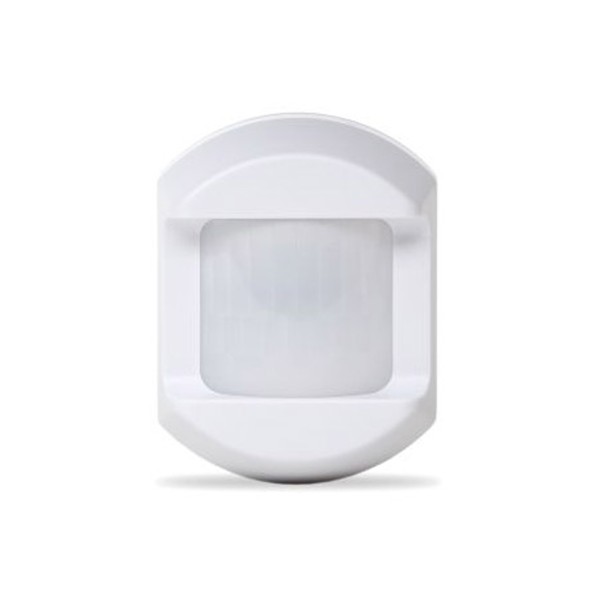

2GIG Motion Detector - 2GIG-PIR1-345

The 2GIG Motion Detector is designed to provide comprehensive wide-angle coverage, detecting movement within a 30 x 50-foot area. Ideal for homes and businesses, it features adjustable pet immunity, supporting animals up to 55 pounds to help minimize false alarms. Its quad-element sensor design ensures precise detection, while selectable high and low sensitivity modes allow for tailored security. Compatible with 2GIG control panels, it communicates over the 345 MHz frequency and is available in both standard (PIR1-345) and encrypted eSeries (PIR1E-345) versions. With easy installation, lithium-powered operation, and ETL/FCC/IC certifications, the 2GIG Motion Detector offers dependable security monitoring.

Features

• Wide-angle motion protection with up to 30 ft x 50 ft coverage
• Pet immunity selectable for animals weighing 33 lbs or 55 lbs (default)
• Selectable high or low sensitivity mode via jumper
• Compact wall-mounted design for residential and commercial use
• Available in non-encrypted (PIR1-345) and encrypted eSeries (PIR1E-345) versions
• Battery-powered with long-lasting lithium power source
• Communicates with control panel using 345 MHz frequency

Specifications

• Wireless Signal Range: 350 ft (106.7 m) open air with Wireless Control Panel
• Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Unique ID Codes: Over 1 million code combinations
• Supervisory Interval: 70 minutes
• Sensor Type: Quad element
• Pet Immunity: Selectable 33 lbs (15 kg) or 55 lbs (25 kg, default)
• Sensitivity: High or Low (default Low)
• Suggested Mounting Height: 7.5 ft (2.3 m)
• Sensor Range: 30 ft (9.1 m) x 50 ft (15.2 m)
• Maximum Horizontal Sensing Angle: 100 Degree
• Dimensions (L x W x H): 3.2 x 2.5 x 1.9 in (8.12 x 6.35 x 4.82 cm)
• Weight (with battery and bracket): 3.7 oz (104.9 g)
• Housing Material: ABS Plastic
• Color: White
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 90%, non-condensing
• Battery: One CR123A 3V Lithium (included)
• Certifications: ETL, FCC, IC
