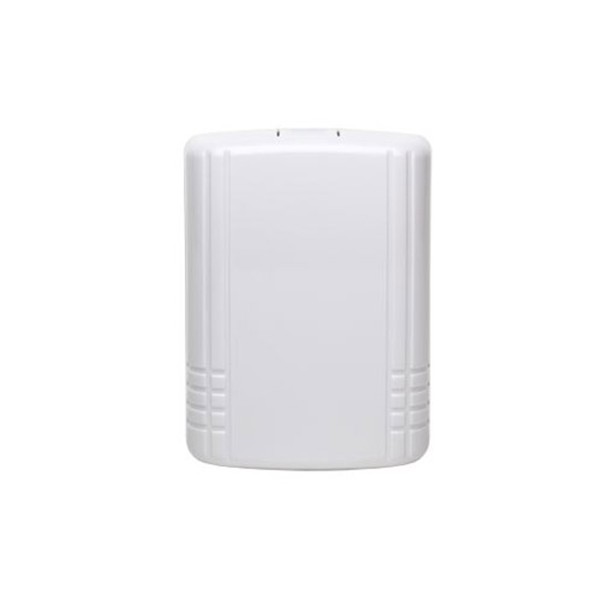

2GIG Encrypted Takeover Module - 2GIG-TAKE1E-345

Details

2GIG Encrypted Takeover Module - 2GIG-TAKE1E-345

The 2GIG Encrypted Takeover Module helps modernize existing security systems by converting wired sensors into supervised encrypted wireless zones. Each module supports up to eight zones, and additional modules can be added to cover larger installations. It works alongside existing 12-volt control panels, sharing backup battery power when needed. With ETL certification and encrypted signaling, it ensures secure communication between legacy devices and new 2GIG panels. Simple to install and versatile in design, the 2GIG Encrypted Takeover Module is a practical solution for retrofitting without losing existing equipment.

Features

• Converts up to 8 hardwired zones into supervised wireless zones
• Simple installation for upgrading or retrofitting wired systems
• Compatible with existing 12-volt control panels
• Expandable with additional modules for more than 8 zones
• Can share backup battery power from an existing 3rd party control panel
• ETL listed for safety compliance

Specifications

• Power Requirements: 9-16 VDC, 50 mA
• Zones Supported: 8 per module
• Mounting: Installed next to existing control panel where hardwired zones are connected
