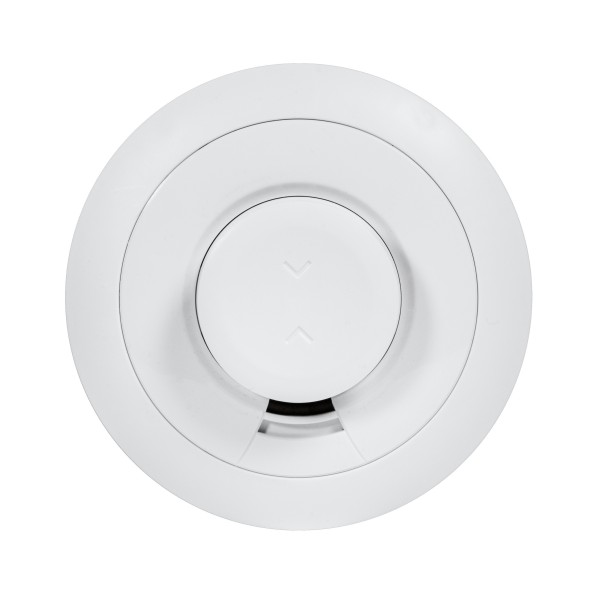

2GIG Encrypted Smoke/Heat/Freeze Sensor - 2GIG-SMKT8E-345

Details

2GIG Encrypted Smoke/Heat/Freeze Sensor - 2GIG-SMKT8E-345

The 2GIG Encrypted Smoke/Heat/Freeze Sensor offers three levels of protection in one device, monitoring for smoke, dangerous heat, and freezing conditions. Meeting the latest UL standards, it uses an optical detection chamber designed to better recognize smoke from modern synthetic sources. Its advanced algorithms reduce nuisance alarms caused by cooking while maintaining sensitivity to genuine threats. The sensor also monitors rapid temperature increases and extreme highs or lows, providing additional layers of awareness. With encrypted communication, a loud built-in alarm, and long-lasting battery power, the 2GIG Encrypted Smoke/Heat/Freeze Sensor delivers reliable life safety coverage.

Features

• Meets new UL217 8th edition and UL268 7th edition requirements
• Designed to recognize smoke from synthetic materials
• Monitors and reports on excessive temperature variations
• Optical smoke detection chamber for improved smoke detection
• Rate of Rise alert: triggers when temperature is 104 degrees F and rises 15 degrees or more in one minute
• Extreme high and low temperature alerts
• Advanced detection algorithms reduce nuisance alarms from cooking
• Long-lasting battery with projected life of 10 years
• 2-year product warranty

Specifications

• Wireless Signal Range: 350 ft (106.7 m) open air with Wireless Control Panel
• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG-SMKT8e-345 works with GC2e and GC3e Panels only
• Supervisory Interval: 70 minutes
• Dimensions (D x H): 4.7 x 2.3 in (120 x 58 mm)
• Weight: 0.46 lbs
• Audible Alarm: Greater than 85 dB at 10 ft (3 m)
• High Temperature Level: 134 degrees F ~ 4 degrees F
• High Temperature Rate of Rise: Above 104 degrees F and increases 15 degrees F or more in one minute
• Low Temperature Level: 40 degrees F ~ 4 degrees F, reset at 45 degrees F ~ 4 degrees F
• Operating Temperature: -40 to 100 degrees F (4.4 to 37.8 degrees C)
• Operating Relative Humidity: 15% to 95%, non-condensing
• Batteries: 2 x CR123A
• Regulatory Listings: UL268 7th Edition, CAN/ULC S529 7th Edition, CSFM
• Projected Battery Life: 10 years
