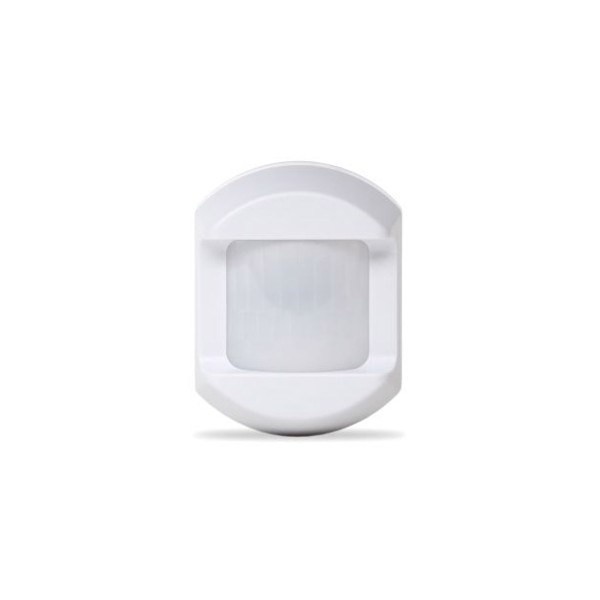

2GIG Encrypted Motion Detector - 2GIG-PIR1E-345

Details

2GIG Encrypted Motion Detector - 2GIG-PIR1E-345

The 2GIG Encrypted Motion Detector enhances interior security by providing broad coverage using a quad element sensor. Designed with selectable pet immunity settings, it allows you to adjust for animals up to 55 pounds, minimizing unnecessary triggers. The device communicates using encrypted 345 MHz signals, ensuring secure and reliable integration with your 2GIG eSeries panels. With options for high or low sensitivity, it can be tailored to fit both residential and commercial needs. Supervision, tamper protection, and long-lasting lithium power make the 2GIG Encrypted Motion Detector a versatile and trusted solution.

Features

• Wide-angle motion protection with up to 30 ft x 50 ft coverage
• Pet immunity selectable for animals weighing 33 lbs or 55 lbs (default)
• Selectable high or low sensitivity mode via jumper
• Wall-mounted design for residential and commercial use
• Available in encrypted eSeries (PIR1E-345) and non-encrypted (PIR1-345) versions
• Battery-powered with long-lasting lithium power source
• Communicates with control panel using 345 MHz frequency

Specifications

• Wireless Signal Range: 350 ft (106.7 m) open air with Wireless Control Panel
• Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Unique ID Codes: Over 1 million combinations
• Supervisory Interval: 70 minutes
• Sensor Type: Quad element
• Pet Immunity: Selectable 33 lbs (15 kg) or 55 lbs (25 kg, default)
• Sensitivity: High or Low (default Low)
• Suggested Mounting Height: 7.5 ft (2.3 m)
• Sensor Range: 30 ft (9.1 m) x 50 ft (15.2 m)
• Maximum Horizontal Sensing Angle: 100 Degree
• Dimensions (L x W x H): 3.2 x 2.5 x 1.9 in (8.12 x 6.35 x 4.82 cm)
• Weight (with battery and bracket): 3.7 oz (104.9 g)
• Housing Material: ABS Plastic
• Color: White
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 90%, non-condensing
• Battery: One CR123A 3V Lithium (included)
• Certifications: ETL, FCC, IC
