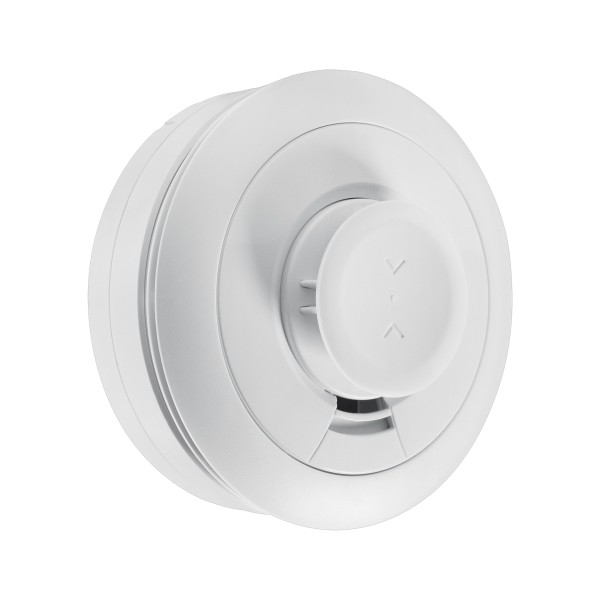

2GIG E+ Extended Range Smoke/Heat/Freeze Sensor - 2GIG-SMKT-900

Details

2GIG E+ Extended Range Smoke/Heat/Freeze Sensor - 2GIG-SMKT-900

The 2GIG E+ Extended Range Smoke/Heat/Freeze Sensor is engineered to detect smoke, fire, and hazardous temperature changes across large spaces. Meeting UL268 7th edition standards, it provides reliable protection with One Go/All Go communication that triggers all connected E+ detectors simultaneously. The sensor monitors high heat, rapid temperature rise, and freezing conditions, offering awareness of multiple hazards. With communication over the 900 MHz spectrum, it ensures extended coverage and encrypted signaling for maximum reliability. A built-in 85 decibel alarm and long battery life complete the package, making it a valuable part of any safety system.

Features

• Extended range of up to 1.2 miles with 900 MHz spectrum (range may vary by building materials)
• Supports UL268 7th edition requirements
• One Go/All Go communication allows all E+ smoke detectors to sound simultaneously for maximum urgency
• Monitors and reports excessive temperature variations, including rate of rise triggered at 104 degrees F
• Optical smoke detection chamber improves smoke detection and recognition of synthetic materials
• Battery life of up to 3 years
• Two-way encrypted communication for enhanced security and reliability

Specifications

• Transmitter Frequency: 904 MHz - 922 MHz
• Compatibility: 2GIG EDGE Panel (firmware 1.3 or later required)
• Supervisory Interval: 70 minutes
• Dimensions (D x H): 4.7 x 2.3 in (120 x 58 mm)
• Weight: 0.46 lbs
• Audible Alarm: Greater than 85 dB at 10 ft (3 m) minimum
• High Temperature Level: 134 degrees F ~ 4 degrees F
• High Temperature Rate of Rise: Above 104 degrees F and increases 15 degrees F or more in one minute
• Low Temperature Warning: At or below 40 degrees F for up to 1 minute; restores at 45 degrees F for up to 1 minute
• Operating Ambient Temperature: -40 to 100 degrees F (4.4 to 37.8 degrees C)
• Operating Relative Humidity: 15% to 95%, non-condensing
• Batteries: 2 x CR123A
• Regulatory Listings: UL268 7th Edition, CAN/ULC S529 7th Edition, CSFM
