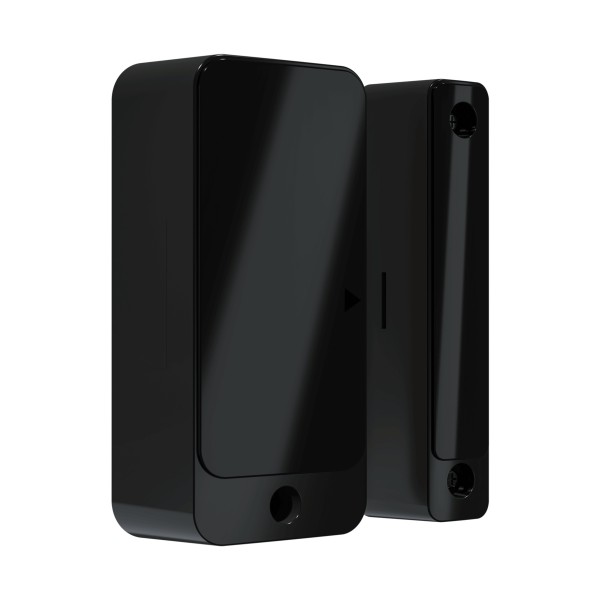

2GIG E+ Extended Range Outdoor Wireless Contact Sensor - 2GIG-DW30E-900

Details

2GIG E+ Extended Range Outdoor Wireless Contact Sensor - 2GIG-DW30E-900

The 2GIG E+ Extended Range Outdoor Wireless Contact Sensor provides dependable monitoring of outdoor entryways, including fences, garages, and pool gates. With extended wireless communication reaching up to 1.2 miles on the 900 MHz platform, it ensures coverage for distant areas of your property. Its rugged design includes IP56-rated water resistance and reliable operation from -40 to 150 degrees Fahrenheit. The wide magnet gap allows flexible placement on oversized doors or gates, while optional Normally Open or Normally Closed inputs add versatility. With long battery life and a paintable ABS housing, this sensor blends into outdoor environments while delivering strong protection.

Features

• Extended range up to 1.2 miles with 900 MHz spectrum
• Two-way encrypted communication for enhanced security and reliability
• Battery life of up to 5 years
• Designed for extreme weather conditions with IP56 water resistance
• Operates in temperatures from -40 to 150 degrees F (-40 to 66 degrees C)
• Supports external Normally Open (NO) or Normally Closed (NC) input
• Wide magnet gap up to 1.3 inches for yard gates, swimming pool access, and detached garages
• Paintable ABS housing to blend with mounting surface

Specifications

• Transmitter Frequency: 904 MHz - 922 MHz
• Compatibility: 2GIG EDGE Panel (Firmware 1.3 or later required)
• Supervisory Interval: 70 minutes
• External Input: Accepts NC or NO dry contact devices
• Magnet Type: Rare Earth
• Magnet Gap: Up to 1.3 inches
• Magnet Dimensions (L x W x H): 4.1 x 1.0 x 1.1 in (103 x 25 x 28 mm)
• Sensor Dimensions (L x W x H): 4.6 x 2.1 x 1.5 in (116 x 54 x 39 mm)
• Weight: 0.5 lbs (231 g)
• Housing Material: Paintable ABS
• Operating Temperature: -40 to 150 degrees F (-40 to 66 degrees C)
• Relative Humidity: 0% to 100%, non-condensing
• Battery: One CR123A 3V Lithium (included)
• Certifications: FCC, IC, ETL, IP56
