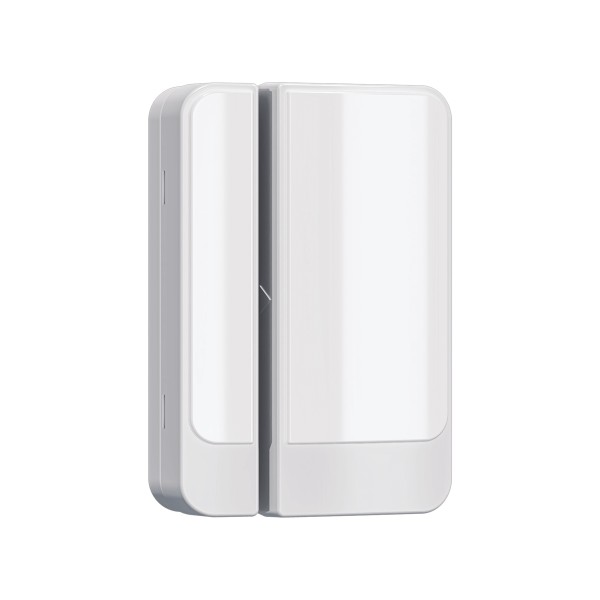

2GIG E+ Extended Range Indoor/Window Sensor - 2GIG-DW10E-900

Details

2GIG E+ Extended Range Indoor/Window Sensor - 2GIG-DW10E-900

The 2GIG E+ Extended Range Indoor/Window Sensor uses the 900 MHz platform to reach farther, helping cover larger properties without repeaters. It communicates with the EDGE panel using two-way encrypted signals for added confidence. The sensor reports open, restore, tamper, and supervisory conditions, and it can accept Normally Open or Normally Closed external contacts for specialty use cases. A pre-included spacer assists with precise alignment on more frame types, and the compact housing looks at home on modern trim. With long battery life and reliable performance, the 2GIG E+ Extended Range Indoor/Window Sensor is a smart choice for entry monitoring.

Features

• Extended range with up to 1.2 miles using 900 MHz spectrum
• Two-way encrypted communication for enhanced security and reliability
• Battery life of up to 8 years, reducing maintenance and service calls
• Supports external Normally Open (NO) or Normally Closed (NC) input
• Seamless installation with pre-included spacer for more door and window applications
• Rounded outer with square interior for accurate and optimized installation
• Modern, sleek design to fit residential and commercial environments

Specifications

• Transmitter Frequency: 904 MHz - 922 MHz
• Compatibility: 2GIG EDGE Panel (Firmware 1.3 or later required)
• Code Outputs: Alarm, Alarm Restore, Supervisory, Low Battery, External Alarm, External Restore, Tamper, Tamper Restore
• Supervisory Interval: 70 minutes
• External Input: Accepts NC or NO dry contact devices
• Magnet Type: Rare Earth
• Magnet Dimensions (L x W x H): 2.42" x 0.58" x 2.42" (6.1 x 1.47 x 6.1 cm)
• Sensor Dimensions (L x W x H): 2.42" x 1.07" x 0.58" (6.1 x 2.7 x 1.47 cm)
• Weight: 1.24 oz (35 g)
• Housing Material: ABS Plastic
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 90%, non-condensing
• Battery: One CR2450 Lithium (installed)
• Certifications: ETL, FCC, Industry Canada
